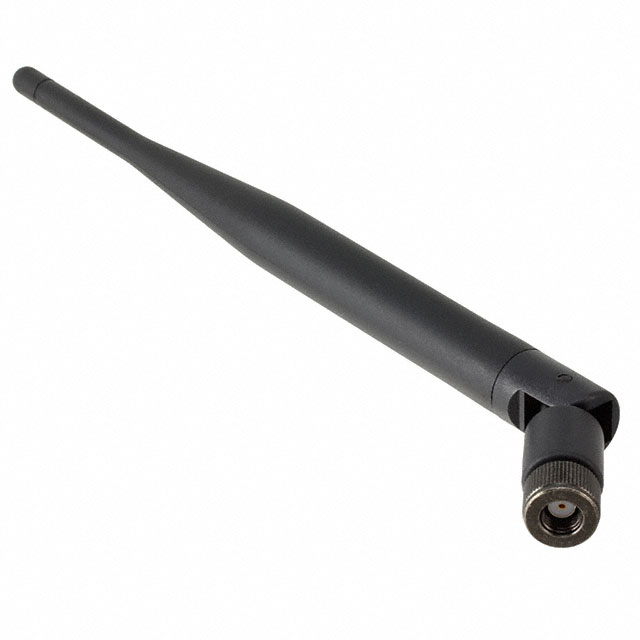

DELTA6C/X/SMAM/S/RP/11

$14.50

Description：RF ANT 2.4GHZ/5.8GHZ WHIP TILT
Series：DELTA 6C
Mfr：Siretta Ltd
Package：Bulk

SKU:506c234768f8 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 2.4GHZ/5.8GHZ WHIP TILT
Series：DELTA 6C
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：802.15.4, Bluetooth, WiFi
Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.4GHz, 5.8GHz
Frequency Range：-
Antenna Type：Whip, Tilt
Number of Bands：2
VSWR：2
Return Loss：-
Gain：4.3dBi
Features：-
Termination：RP-SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：7.717" (196.00mm)
Applications：Bluetooth, WLAN, Zigbee™
Power - Max：-

Download product information

DELTA6C/X/SMAM/S/RP/11

Overview

The Siretta DELTA6C/X/SMAM/S/RP/11 is a dual-band external WLAN antenna designed for WiFi applications. It operates within the 2.4 GHz to 5.8 GHz frequency range, supporting both 2.4 GHz and 5.8 GHz bands. The unit features an RP SMA connector with male polarity and utilizes a swivel mounting type. It provides omnidirectional radiation characteristics with a gain of 5 dBi. The antenna employs a two-part whip design and includes a cable length of 1 meter.

Feature Summary

Dual-band operation covering 2.4 GHz and 5.8 GHz frequencies
Omnidirectional radiation pattern for consistent signal coverage
Swivel mounting configuration with RP SMA male connector
Two-part whip physical structure

Applications

WLAN connectivity systems
WiFi network infrastructure
Wireless communication devices requiring dual-band support

Procurement Notes

Verify the specific model suffix against official Siretta documentation to confirm the exact electrical specifications and connector orientation. Ensure compatibility with existing RP SMA interfaces in the target system. Cross-reference the part number with authorized distributor catalogs to validate current availability and technical datasheet versions before finalizing procurement orders.

Selection Notes

Select this component when a dual-band solution is required for both 2.4 GHz and 5.8 GHz wireless protocols. The swivel mount allows for flexible positioning relative to the host device. Consider the 5 dBi gain and omnidirectional pattern for general coverage needs rather than directional point-to-point links. Verify that the RP SMA male interface matches the receiving equipment's port requirements.

Part Context

This antenna belongs to the Siretta DELTA series, which focuses on external wireless connectivity solutions. The DELTA6C variant specifically addresses dual-band requirements, distinguishing it from single-band models like the DELTA15 or DELTA6B. It serves as a specialized component for integrating robust wireless capabilities into embedded or industrial hardware designs.
