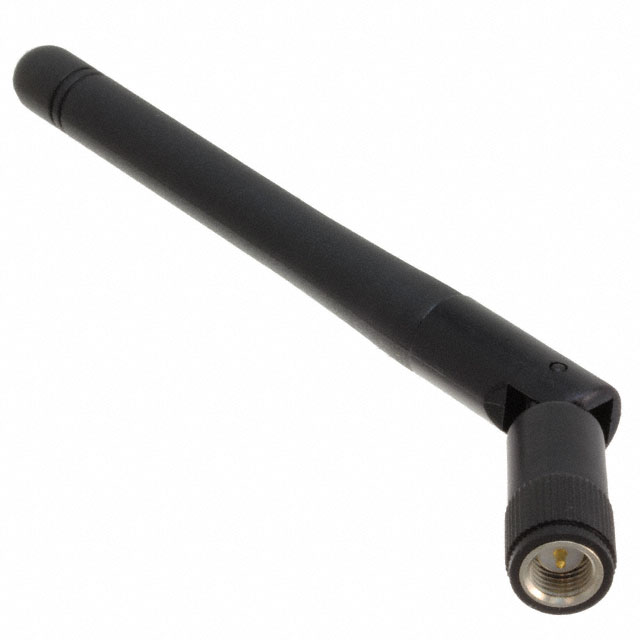

DELTA7A/X/SMAM/S/S/11

$8.59

Description：RF ANT 2.4GHZ/5.8GHZ WHIP TILT
Series：DELTA 7A
Mfr：Siretta Ltd
Package：Bulk

SKU:98f55b6d1aea Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DELTA7A/X/SMAM/S/S/11 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Siretta Ltd. Its product description is RF ANT 2.4GHZ/5.8GHZ WHIP TILT. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for DELTA7A/X/SMAM/S/S/11

Description：RF ANT 2.4GHZ/5.8GHZ WHIP TILT
Series：DELTA 7A
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：General ISM
Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.4GHz, 5.8GHz
Frequency Range：-
Antenna Type：Whip, Tilt
Number of Bands：2
VSWR：2
Return Loss：-
Gain：1.5dBi
Features：-
Termination：SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：4.331" (110.00mm)
Applications：ISM
Power - Max：-

Antennas RF datasheet and documents for DELTA7A/X/SMAM/S/S/11

DELTA7A/X/SMAM/S/S/11

Antennas RF Overview

The Siretta DELTA7A/X/SMAM/S/S/11 is a dual-band hinged RF antenna designed for wireless applications. It operates across the 2.4 GHz and 5.8 GHz ISM frequency bands, providing coverage for Wi-Fi, Bluetooth, Zigbee, and IoT protocols. The unit features a male SMA connector and utilizes a flexible hinge mechanism to allow precise directional adjustment. Constructed with a robust physical design, it ensures reliable signal transmission in compact electronic assemblies requiring multi-protocol connectivity.

Antennas RF Feature Summary

Dual-band operation supporting 2.4 GHz and 5.8 GHz ISM frequencies
Integrated hinge mechanism for adjustable directional positioning
Compatible with Wi-Fi, Bluetooth, Zigbee, and general IoT protocols

Antennas RF Applications

Wi-Fi communication modules
Bluetooth device integration
Zigbee sensor networks
IoT application hardware

Antennas RF Procurement Notes

Verify the specific SMA connector polarity and hinge configuration against system requirements before ordering. Confirm that the dual-band frequency range aligns with the target protocol specifications. Ensure the mounting interface accommodates the hinge geometry. Cross-reference the manufacturer part number to avoid confusion with similar series models.

Antennas RF Selection Notes

Select this component when both 2.4 GHz and 5.8 GHz bands are required within a single assembly. The hinged design offers spatial flexibility compared to fixed antennas. Consider the physical footprint of the hinge mechanism during enclosure design. This model suits applications needing simultaneous or switchable support for multiple short-range wireless standards.

Antennas RF Part Context

This antenna belongs to the Siretta DELTA series, which focuses on compact wireless solutions. The DELTA7A variant specifically addresses dual-band needs using a mechanical hinge for orientation control. It complements other Siretta products by offering a versatile option for devices integrating multiple wireless technologies without requiring separate antenna structures.
