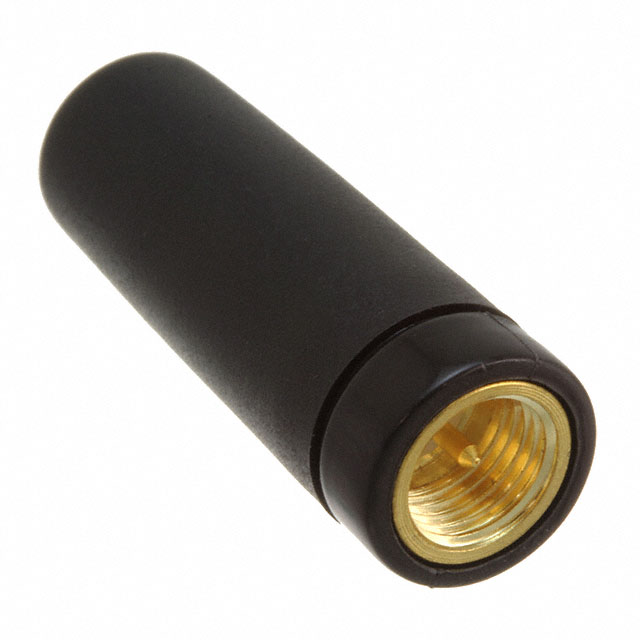

DELTA8A/X/SMAM/S/S/17

$7.22

Description：RF ANT 2.4GHZ WHIP STR SMA MALE
Series：DELTA 8A
Mfr：Siretta Ltd
Package：Bulk

SKU:5e38362f13ae Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 2.4GHZ WHIP STR SMA MALE
Series：DELTA 8A
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：802.15.4, Bluetooth, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：2
Return Loss：-
Gain：0dBi
Features：-
Termination：SMA Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：1.063" (27.00mm)
Applications：Bluetooth, WLAN, Zigbee™
Power - Max：-

Download product information

DELTA8A/X/SMAM/S/S/17

Overview

The Siretta DELTA8A/X/SMAM/S/S/17 is a passive indoor antenna designed for multi-protocol wireless communication. It supports 5G, 4G LTE, and 2.4 GHz Wi-Fi applications. The unit features a 27mm stubby physical form factor with an SMA male connector. Operating frequencies span from 2.4 GHz to 2.5 GHz for Wi-Fi protocols including Bluetooth and BLE under 802.15.1 standards.

Feature Summary

Supports simultaneous operation across 5G, 4G LTE, and 2.4 GHz Wi-Fi bands
Compact 27mm stubby design suitable for space-constrained indoor installations
Equipped with an SMA male connector for direct interface compatibility

Applications

Indoor wireless connectivity modules
IoT devices requiring multi-band support
Bluetooth Low Energy (BLE) implementations
Wi-Fi enabled sensor networks

Procurement Notes

Verify the specific datasheet version corresponding to the suffix /S/S/17 to ensure mechanical and electrical compliance. Confirm that the SMA male connector polarity matches the receiving device interface requirements. Check RoHS and REACH SVHC status against current regulatory standards before integration into final products.

Selection Notes

Select this component when a low-profile indoor solution is required for combined cellular and Wi-Fi traffic. The stubby form factor minimizes visual impact while maintaining necessary signal integrity for short-range communications. Ensure the application environment does not require high-gain directional performance.

Part Context

This model belongs to the Delta series of antennas manufactured by Siretta Ltd. The series focuses on compact, passive solutions for indoor wireless applications. The Delta8A variant specifically addresses multi-protocol needs within a minimal footprint, distinguishing it from larger panel or whip style alternatives in the manufacturer's portfolio.
