DF07M30

Headers, Male Pins Overview

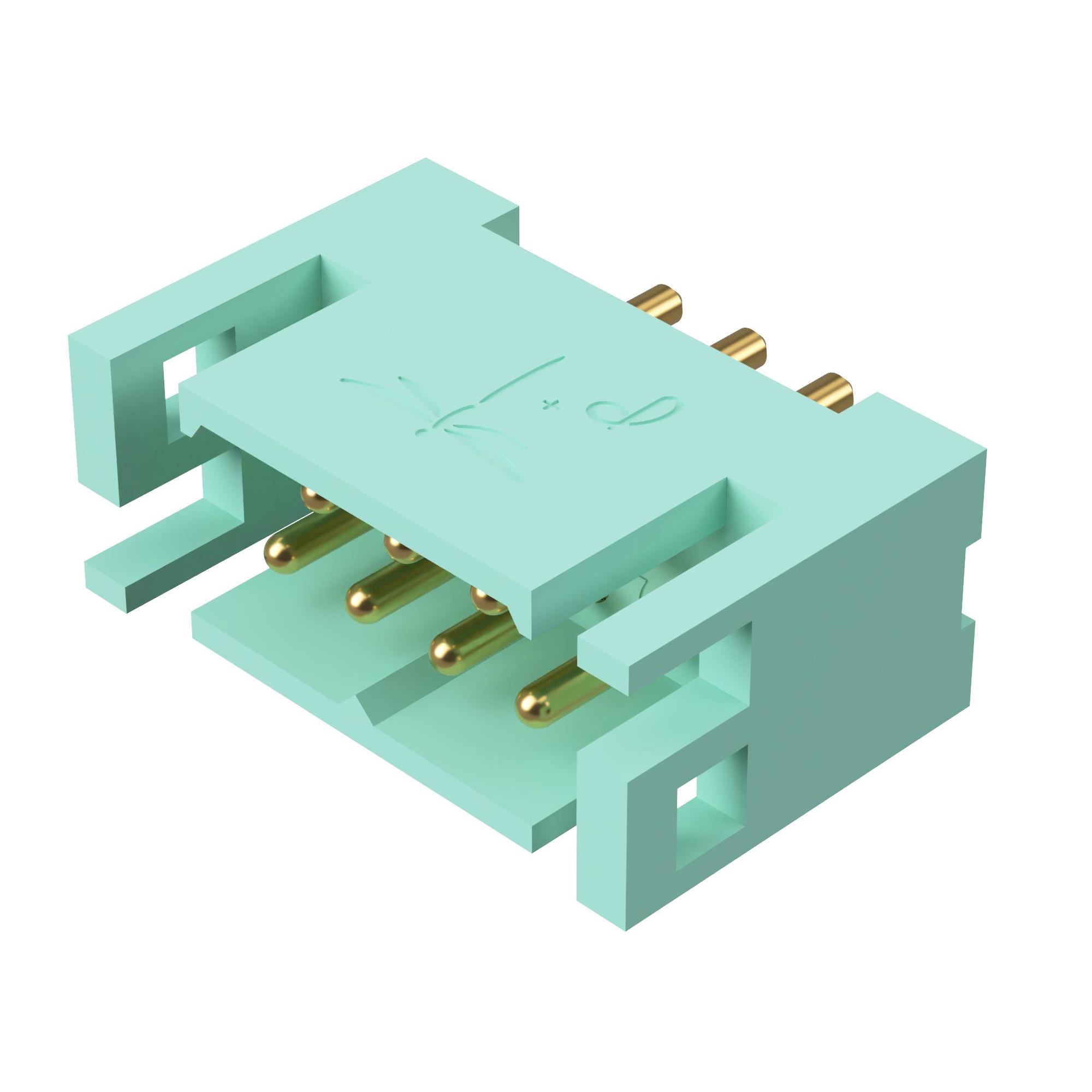

The Amphenol Positronic DF07M30 is a DragonFly series power-to-board connector designed for surface mount applications. It features a male pin configuration with seven positions arranged in two rows. The contacts are constructed from copper alloy and finished with gold plating to ensure reliable conductivity. Designed for robust performance, the component supports wire gauges of 16 AWG. It operates within a temperature range of -55°C to +125°C. The housing utilizes nylon insulation rated UL94 V-0 for fire safety. This straight-angle connector facilitates efficient board-level power distribution.

Headers, Male Pins Feature Summary

• Gold-plated copper alloy contacts provide durable electrical connectivity
• Nylon insulation housing meets UL94 V-0 flammability standards
• Surface mount right-angle design enables compact PCB integration

Headers, Male Pins Applications

• Power distribution on printed circuit boards
• Industrial equipment internal wiring connections
• Consumer electronics power supply interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix designation when ordering, as variants like DF07M30/AA may exist with distinct packaging or minor specification differences. Confirm that the surface mount footprint matches your PCB layout requirements. Ensure the 16 AWG wire gauge compatibility aligns with your harness specifications. Check current availability status directly with authorized distributors, as stock levels fluctuate. Validate the operating temperature range against your environmental conditions before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a high-current surface mount solution is required for space-constrained designs. The two-row arrangement allows for dense pin placement without increasing the board footprint significantly. Consider the gold plating for environments requiring corrosion resistance. The right-angle orientation aids in routing wires away from adjacent components. Verify that the mechanical retention of the surface mount style meets the vibration and stress requirements of the final assembly.

Headers, Male Pins Part Context

This part belongs to the DragonFly family of connectors by Amphenol Positronic. The series specializes in power-to-board interconnects that bridge cable assemblies to rigid circuit boards. These connectors typically feature crimp termination for the wire side and surface mount pads for the board side. The DragonFly line emphasizes durability and high current carrying capacity in a compact form factor suitable for modern electronic manufacturing.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
