DF11-16DP-2V(20)

Headers, Male Pins Overview

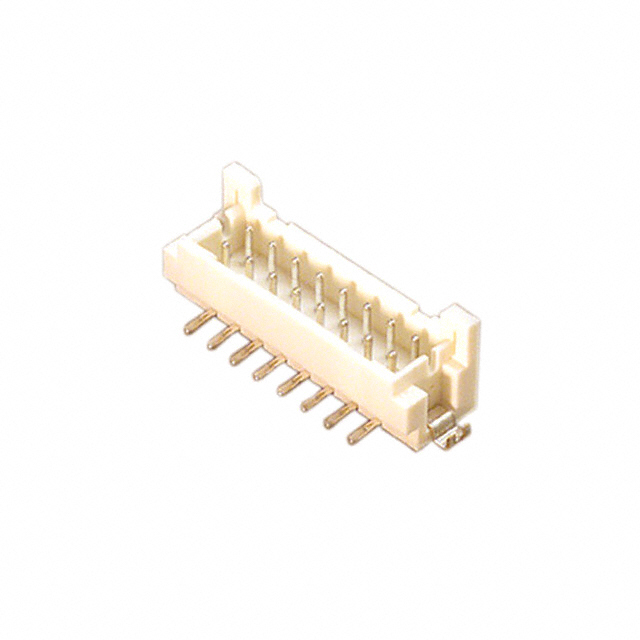

The Hirose DF11-16DP-2V(20) is a 16-position surface mount header from the DF11 series, designed for board-to-board or cable connections. It features a 2mm double-row pitch with shrouded four-wall construction. The component utilizes gold-plated contacts and supports SMT installation.

Headers, Male Pins Feature Summary

• Shrouded four-wall design ensures precise alignment during assembly
• Surface mount technology compatible for automated placement
• Gold contact plating provides reliable signal transmission

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable to board connections
• High-density electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix (20) against official datasheets to confirm packaging quantity and tape/reel specifications. Ensure compatibility with standard SMT reflow profiles and check for end-of-life status before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this model for applications requiring high-density 2mm pitch connections with robust mechanical stability. Consider the shrouded design for improved mating accuracy in confined spaces compared to open headers.

Headers, Male Pins Part Context

This component belongs to the Hirose DF11 series, which offers various configurations including through-hole and right-angle options. The DF11 series is widely used in compact electronic devices requiring reliable interconnects.

Headers, Male Pins Replacement Considerations

Consult official Hirose documentation for direct substitutes within the DF11 family. Verify pin count, pitch, and mounting style when evaluating alternative part numbers.
