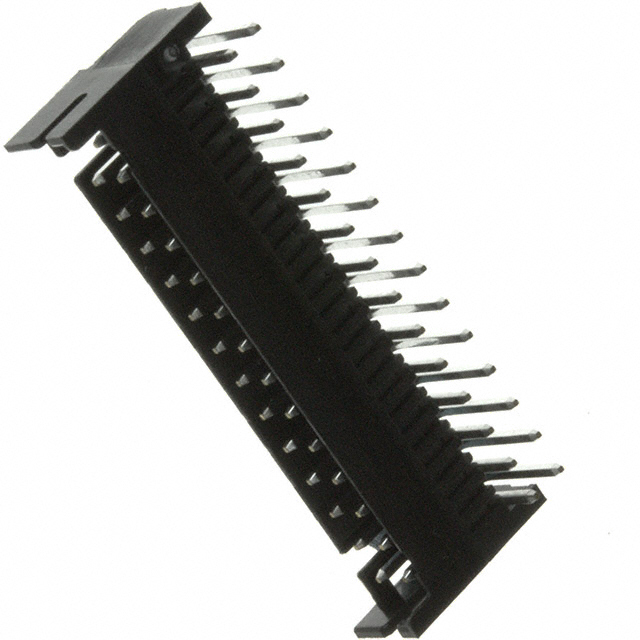

DF11-28DP-2DS(24)

$1.29

Description：CONN HEADER R/A 28POS 2MM
Series：DF11
Mfr：Hirose Electric Co Ltd
Package：Tube

SKU:d1da5b6fece1 Category: Headers, Male Pins Brand: Hirose Electric Co Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DF11-28DP-2DS(24) is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is CONN HEADER R/A 28POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for DF11-28DP-2DS(24)

Description：CONN HEADER R/A 28POS 2MM
Series：DF11
Mfr：Hirose Electric Co Ltd
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：28
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Detent Lock
Contact Length - Mating：0.118" (3.00mm)
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.197" (5.00mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：39.4µin (1.00µm)
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA), Nylon
Features：-
Operating Temperature：-40°C ~ 85°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2A
Voltage Rating：250V

Headers, Male Pins datasheet and documents for DF11-28DP-2DS(24)

DF11-28DP-2DS(24)

Headers, Male Pins Overview

The DF11-28DP-2DS(24) is a shrouded, double-row PCB header from the Hirose DF11 series. It features 28 positions with a 2 mm (0.079 in) pitch and right-angle through-hole mounting. The connector utilizes brass contacts with tin plating, rated for 2 A current and 250 V voltage. Designed for board-to-board or wire-to-board applications, it operates within a temperature range of -30°C to +85°C. The housing is constructed from polyamide (PA) nylon with UL94 V-0 flammability rating.

Headers, Male Pins Feature Summary

Compact double-row design allows high pin counts in minimal depth
Four-wall shrouded structure prevents mating errors and wire entanglement
Right-angle orientation facilitates efficient PCB layout space utilization

Headers, Male Pins Applications

Board-to-board interconnections
Wire-to-board signal transmission
High-density electronic module interfaces

Headers, Male Pins Procurement Notes

Verify the exact part number suffix against official Hirose documentation to ensure correct packaging and compliance status. Confirm that the specific variant matches the required pin count and mounting style for your assembly. Check for any recent product change notices regarding material updates or end-of-life status before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this component when a high-density connection is required within constrained vertical space. The 2 mm pitch supports standard signal routing while the shrouded design ensures reliable mating. Ensure the PCB footprint accommodates the right-angle lead configuration and verify thermal requirements align with the specified operating temperature range.

Headers, Male Pins Part Context

This component belongs to the DF11 SignalBee series, characterized by its compact form factor and robust mechanical locking mechanism. The series is engineered for applications demanding reliable signal integrity in tight spaces, offering a balance between density and ease of assembly through its guided mating features.
