DF11-28DP-2DSA(24)

Headers, Male Pins Overview

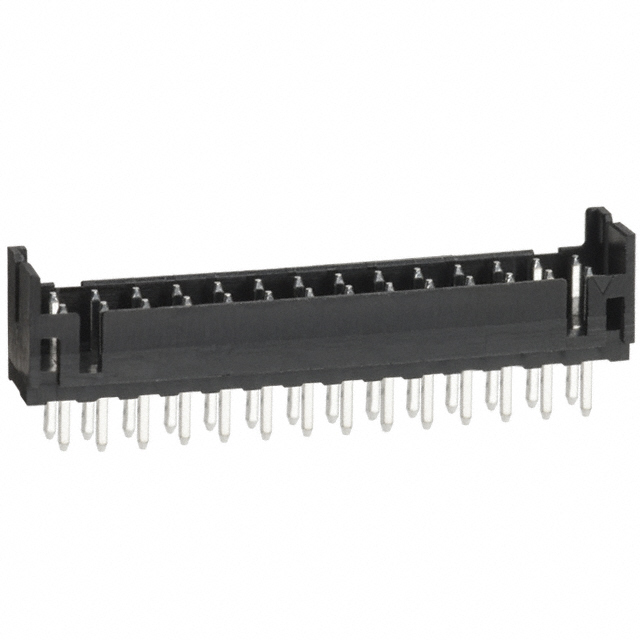

The DF11-28DP-2DSA(24) is a Hirose Electric Co Ltd header connector from the DF11 series. It features 28 positions with a 2 mm pitch and a two-row configuration. Designed for through-hole mounting, it utilizes straight solder pin termination. The contacts are made of brass with tin plating. Rated at 250 V and 2 A, it operates within a temperature range of -30°C to +85°C.

Headers, Male Pins Feature Summary

• Compact double-row design allows high density in limited space
• Robust four-wall shrouded housing prevents mating errors
• Integrated guide ribs ensure correct alignment during connection

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• Electronic equipment internal circuitry

Headers, Male Pins Procurement Notes

Verify the specific suffix (24) against official datasheets to confirm packaging details. Confirm that the tin-plated contact finish matches application requirements. Ensure the through-hole straight orientation fits the PCB layout constraints before procurement.

Headers, Male Pins Selection Notes

Select this component when a 28-position, 2 mm pitch header is required. Consider the 2A current rating and 250V voltage limits. Verify compatibility with mating receptacles in the DF11 series. Check if the straight orientation suits the assembly depth.

Headers, Male Pins Part Context

This part belongs to the Hirose DF11 series, characterized by a compact footprint and robust mechanical locking. The series supports various position counts and orientations. This specific model provides a reliable solution for dense electronic assemblies requiring secure board connections.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other DF11 series headers with matching 28 positions and 2 mm pitch. Verify identical row count, mounting style, and contact finish. Cross-reference part numbers like DF11-28DP-2DS variants if right-angle orientation is acceptable.
