DF11-8DS-2V(56)

Headers, Receptacles, Female Sockets Overview

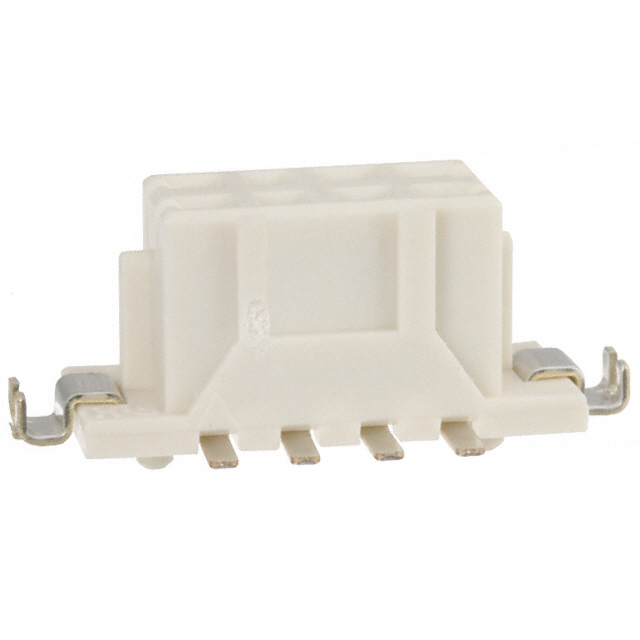

The DF11-8DS-2V(56) is a Hirose Electric Co Ltd receptacle connector from the DF11 series. It features 8 positions in a dual-row configuration with a 2.00mm (0.079 inch) mating pitch. Designed for surface mount installation, it utilizes solder termination and friction lock fastening. The contacts are female sockets made of phosphor bronze with tin plating. Rated at 2A current and 250V voltage, it operates within a temperature range of -30°C to 85°C. The housing is beige polyamide (PA) nylon with UL94 V-0 flammability rating.

Headers, Receptacles, Female Sockets Feature Summary

• Compact dual-row design providing high density in limited space
• Friction lock mechanism ensures secure mating retention
• Surface mount construction with solder termination for PCB integration

Headers, Receptacles, Female Sockets Applications

• General electronic equipment interconnections
• Board-to-board connections
• Cable-to-board connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against official Hirose documentation to confirm exact plating thickness and packaging type. Ensure compatibility with mating pin headers regarding stacking height and polarization features. Confirm RoHS compliance status matches current regulatory requirements for the target market before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, surface-mount solution is required for 2.00mm pitch applications. The dual-row layout maximizes contact density compared to single-row alternatives. Verify that the 2A current rating and 250V insulation voltage meet the circuit's electrical demands and environmental operating conditions.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the DF11 series, characterized by its compact footprint and robust shrouded design. The series supports various termination styles and contact counts, offering flexibility for diverse board layouts. The DF11-8DS variant specifically addresses needs for small-sized, low-profile receptacles in consumer and industrial electronics.
