DF11G-10DP-2V(50)

Headers, Male Pins Overview

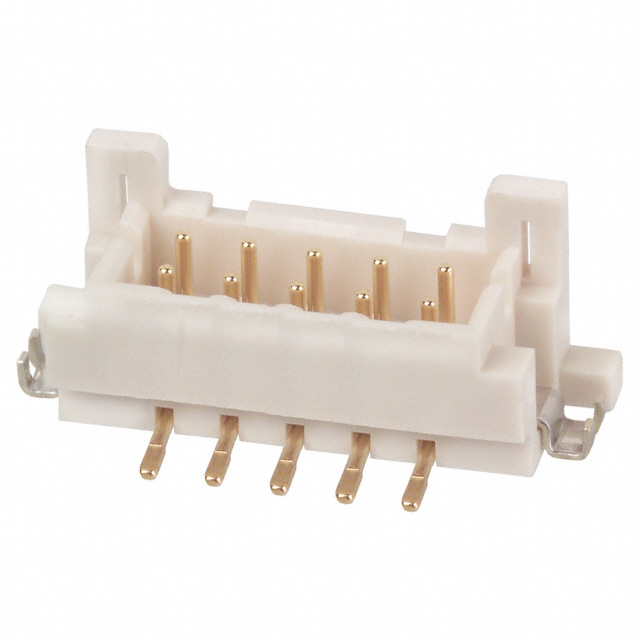

The DF11G-10DP-2V(50) is a 10-position, double-row PCB header from the Hirose DF11 series. It features a 2mm pitch and is designed for surface mount technology (SMT) with a right-angle orientation. The connector utilizes gold-plated contacts to ensure reliable signal transmission. Rated for 2A current and 250V voltage, it supports AWG #22 to #30 wires. This specific variant is identified as End-of-Life (EOL) by the manufacturer.

Headers, Male Pins Feature Summary

• Double-row shrouded design condenses 2mm pitch contacts within a narrow 5mm width.
• Surface mount termination ensures secure attachment to printed circuit boards.
• Gold plating on contact mating areas provides corrosion resistance and stable conductivity.

Headers, Male Pins Applications

• Wearable devices such as smartwatches and smart glasses
• Compact consumer electronics requiring space-saving interconnects
• Automotive electronic modules

Headers, Male Pins Procurement Notes

This component is officially listed as End-of-Life (EOL) by Hirose Electric. Availability is restricted or non-existent through standard distribution channels. Procurement requires verification of remaining stock levels with authorized suppliers. Buyers must confirm the authenticity of any available units due to the discontinued status. Alternative sourcing strategies should be initiated immediately to mitigate supply chain risks associated with obsolete components.

Headers, Male Pins Selection Notes

Select this part only if the specific 10-position, double-row, SMT, right-angle configuration with gold plating is required. Verify that the 2mm pitch and 5mm width constraints fit the board layout. Ensure compatibility with AWG #22–#30 wiring. Since the part is EOL, evaluate replacement options early in the design phase to avoid future obsolescence issues during production scaling.

Headers, Male Pins Part Context

The DF11 series is engineered for high-density applications where space is limited. It offers flexible connection methods including crimping and IDC wiring for PCB-to-cable, cable-to-cable, and PCB-to-PCB interfaces. The series supports both tin and gold plating options to suit various environmental and performance requirements across industrial and consumer sectors.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers are not provided in the source documentation. Users should consult Hirose Electric directly for official cross-reference recommendations or next-generation alternatives suitable for the same application parameters.
