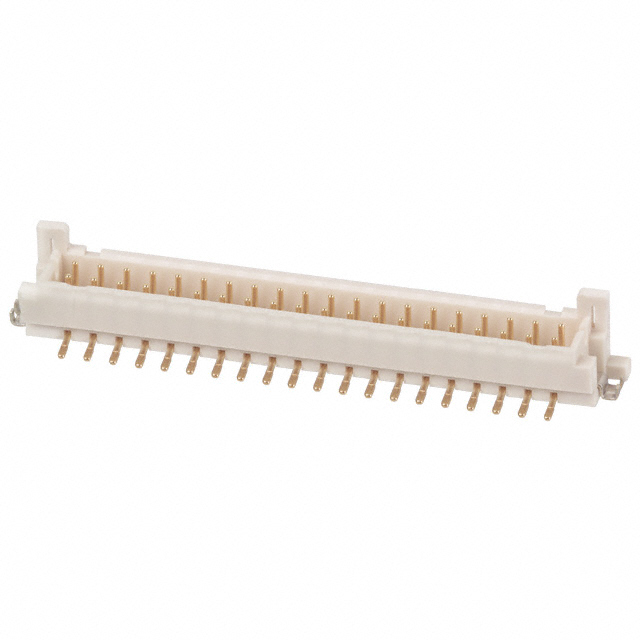

DF11G-40DP-2V(50)

DF11G-40DP-2V(50) is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is CONN HEADER SMD 40POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for DF11G-40DP-2V(50)

• Description：CONN HEADER SMD 40POS 2MM
• Series：DF11
• Mfr：Hirose Electric Co Ltd
• Package：Tube
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.079" (2.00mm)
• Number of Positions：40
• Number of Rows：2
• Row Spacing - Mating：0.079" (2.00mm)
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Detent Lock
• Contact Length - Mating：-
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.283" (7.19mm)
• Contact Shape：Circular
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：-
• Contact Material：Brass
• Insulation Material：Polyamide (PA), Nylon
• Features：Board Guide, Solder Retention
• Operating Temperature：-30°C ~ 85°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Beige
• Current Rating (Amps)：2A
• Voltage Rating：250V

Headers, Male Pins datasheet and documents for DF11G-40DP-2V(50)
