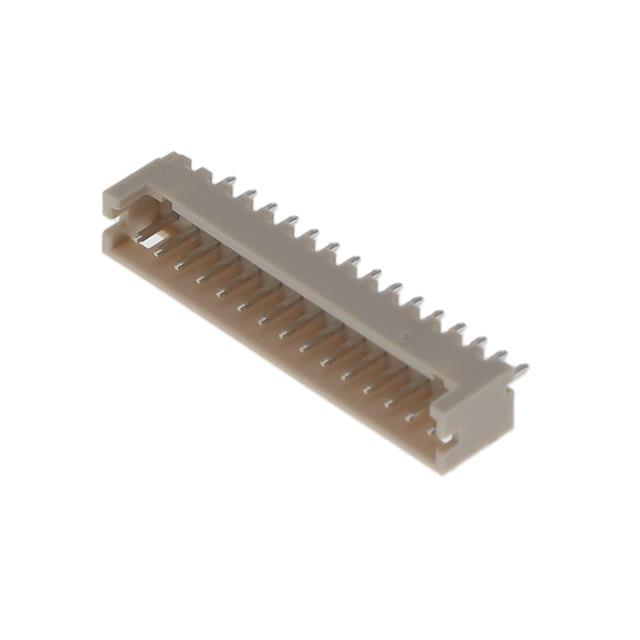

DF13-15P-1.25DSA(25)

$0.77

Description：CONNECTOR
Series：DF13
Mfr：Hirose Electric Co Ltd
Package：Tube

SKU:db1a1ad20e0c Category: Headers, Male Pins Brand: Hirose Electric Co Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DF13-15P-1.25DSA(25) is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is CONNECTOR. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for DF13-15P-1.25DSA(25)

Description：CONNECTOR
Series：DF13
Mfr：Hirose Electric Co Ltd
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.049" (1.25mm)
Number of Positions：15
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Detent Lock
Contact Length - Mating：-
Contact Length - Post：0.091" (2.30mm)
Overall Contact Length：-
Insulation Height：0.169" (4.30mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA), Nylon
Features：-
Operating Temperature：-35°C ~ 85°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Beige
Current Rating (Amps)：1A per Contact
Voltage Rating：150V

Headers, Male Pins datasheet and documents for DF13-15P-1.25DSA(25)

DF13-15P-1.25DSA(25)

Headers, Male Pins Overview

The DF13-15P-1.25DSA(25) is a single-row, shrouded pin header from the Hirose DF13 SignalBee series. It features a 1.25 mm pitch with 15 positions and straight through-hole solder termination. Constructed with brass contacts featuring tin plating and a polyamide (PA) insulator rated UL 94 V-0, it supports 1 A current and 150 V voltage. The operating temperature range spans -35°C to +85°C, with a mating height of 5.3 mm.

Headers, Male Pins Feature Summary

Shrouded four-wall design ensures precise alignment during board-to-wire connections.
SignalBee series offers compact form factor for high-density mounting applications.
Tin-plated brass contacts provide reliable conductivity and corrosion resistance.

Headers, Male Pins Applications

Board-to-wire interconnections in consumer electronics
Industrial control system signal routing
Automotive electronic module interfaces

Headers, Male Pins Procurement Notes

Verify component authenticity against official Hirose documentation due to end-of-life status. Confirm that the specific suffix matches required packaging and contact specifications. Check for authorized distribution channels as availability may be limited. Ensure compatibility with mating DF13 series housings before procurement.

Headers, Male Pins Selection Notes

Select this variant for vertical through-hole mounting requirements within the DF13 ecosystem. Consider the 1.25 mm pitch constraint for PCB layout density. Verify that the 1 A rating meets circuit load demands. Evaluate thermal stability needs against the specified -35°C to +85°C operational window.

Headers, Male Pins Part Context

This component belongs to the DF13 SignalBee family, designed for space-constrained wire-to-board applications. It pairs with corresponding socket housings like the DF13-15S-1.25C. The series emphasizes reliability in harsh environments while maintaining a low profile suitable for modern electronic assemblies requiring robust mechanical retention.
