DF13A-20DP-1.25V(93)

Headers, Male Pins Overview

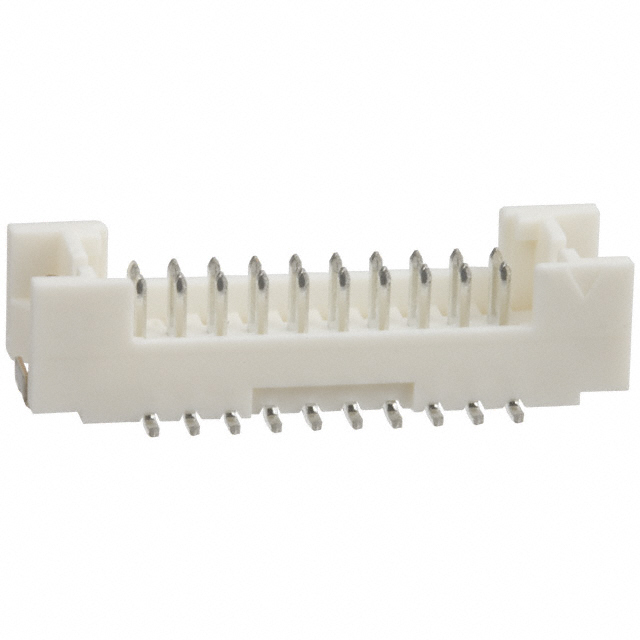

The Hirose DF13A-20DP-1.25V(93) is a 20-position surface mount header connector from the DF13 series. It features a 1.25mm pitch and operates within a temperature range of -35°C to 85°C. The connector has a rated voltage of 150V and a current capacity of 1A. Constructed with brass contacts and polyamide insulation, it utilizes gold plating for mating surfaces. The unit includes a four-wall shield and employs pin locking for secure attachment.

Headers, Male Pins Feature Summary

• Miniature low-profile design suitable for compact electronic assemblies
• Four-wall shielding provides enhanced protection against interference
• Pin locking mechanism ensures secure mating connection

Headers, Male Pins Applications

• Compact electronic assemblies requiring board-to-cable connections
• Surface mount applications with space constraints
• Devices utilizing the DF13 series interconnect system

Headers, Male Pins Procurement Notes

Verify component authenticity through official manufacturer channels or authorized distributors. Confirm that the part number matches the specific suffix requirements for packaging and material specifications. Check for obsolescence status as availability may be limited. Ensure compliance with relevant safety standards before integration into final products.

Headers, Male Pins Selection Notes

Select this connector when a 1.25mm pitch surface mount header is required. Consider the 150V rating and 1A current limit for circuit compatibility. The low profile height of 5.8mm makes it suitable for tight vertical spaces. Verify that the mating cable housing aligns with the DF13 series specifications.

Headers, Male Pins Part Context

This component belongs to the Hirose DF13 series, which focuses on miniature crimping connectors. The series is designed for high-density applications where space efficiency is critical. The DF13A variant specifically addresses surface mount straight type requirements, offering reliable performance in consumer and industrial electronics.

Headers, Male Pins Replacement Considerations

Consult official Hirose documentation for direct substitutes. Cross-reference with other DF13 series headers if pin count or pitch differs. Verify mechanical dimensions and electrical ratings match before substitution.
