DF14A-20P-1.25H(20)

Headers, Male Pins Overview

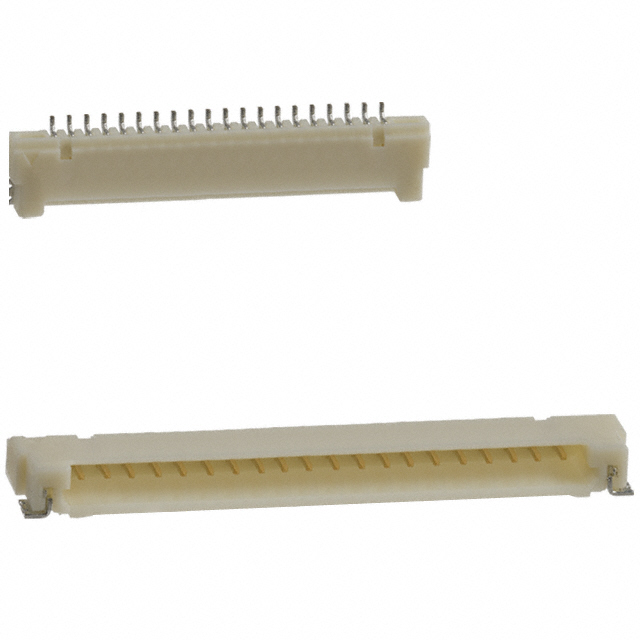

The Hirose Electric Co Ltd DF14A-20P-1.25H(20) is a shrouded header connector from the DF14 series, designed for wire-to-board applications. It features a single row of twenty male pin contacts with a 1.25mm pitch. The component utilizes surface mount right-angle termination and employs gold plating on both mating and tail contacts to ensure reliable conductivity. Constructed with brass contacts and polyamide insulation, it supports a rated current of 1A and a voltage of 150VAC. The unit operates within a temperature range of -35°C to 85°C and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Shrouded design with four-wall coverage for secure alignment
• Push-pull locking mechanism for firm connection retention
• Gold-plated contacts for enhanced corrosion resistance
• Right-angle surface mount termination for compact layouts

Headers, Male Pins Applications

• Wire-to-board interconnections in consumer electronics
• Internal connections within industrial control modules
• Signal transmission in automotive electronic systems
• Board-to-cable assembly in telecommunications equipment

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix (20) against official datasheets to confirm contact plating specifications, as variations exist within the DF14 family. Confirm RoHS compliance status and moisture sensitivity level requirements prior to integration into the manufacturing process. Ensure compatibility with automated pick-and-place equipment due to the surface mount package style.

Headers, Male Pins Selection Notes

Select this model when a shrouded, right-angle header with gold-plated contacts is required for high-reliability signal paths. The 1.25mm pitch allows for dense board layouts while maintaining adequate spacing. Consider the push-pull locking feature if vibration resistance is critical. Verify that the 1A current rating aligns with the circuit's electrical demands.

Headers, Male Pins Part Context

This component belongs to the Hirose DF14 series, which offers various pin counts and termination styles. The DF14A variant specifically denotes gold-plated contacts, distinguishing it from tin-plated counterparts like the standard DF14. It serves as a robust solution for applications requiring durable, high-cycle connectivity in space-constrained environments.

Headers, Male Pins Replacement Considerations

DF14A-20P-1.25H(52) is a confirmed substitute with identical mechanical dimensions and gold plating but differs in packaging format.
