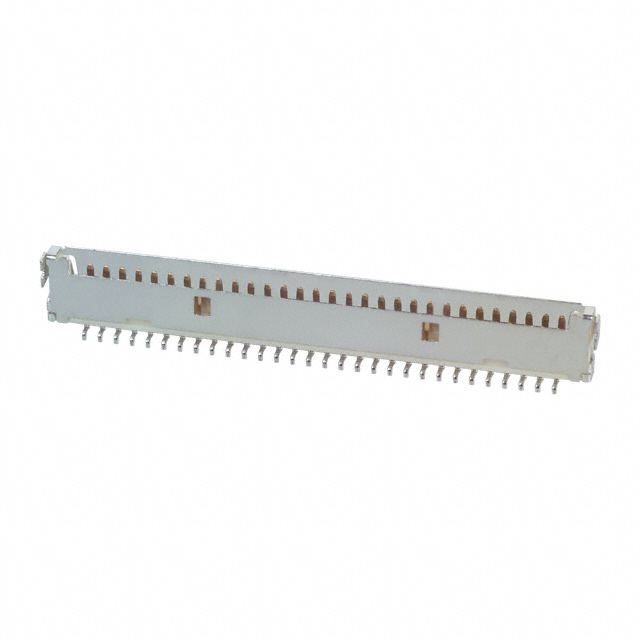

DF19G-30P-1H(59)

Headers, Male Pins Overview

The DF19G-30P-1H(59) is a surface-mount header connector from the Hirose DF19 series. It features 30 positions with a 1 mm pitch and utilizes right-angle termination for board-to-cable applications. The housing is constructed from black polyamide (PA) nylon, rated UL94 V-0. Contacts are made of phosphor bronze with gold plating. It operates within a temperature range of -35°C to 85°C and supports a voltage rating of 100V. The component includes a three-wall shield design and friction lock retention.

Headers, Male Pins Feature Summary

• Thin profile design accommodating discrete wires and micro-coaxial cables
• Three-wall shielding structure for enhanced signal integrity
• Friction lock mechanism ensures secure mating retention

Headers, Male Pins Applications

• Board-to-cable interconnections in compact electronic assemblies
• Connections utilizing thin micro-coaxial cables
• Surface-mount integration in space-constrained devices

Headers, Male Pins Procurement Notes

Verify component authenticity through official manufacturer channels or authorized distributors. Confirm that the specific suffix matches the required orientation and termination style. Check current lifecycle status as this part may be discontinued. Ensure compatibility with mating DF19 series receptacles before procurement.

Headers, Male Pins Selection Notes

Select this component when a right-angle surface-mount header is required for high-density layouts. The 1 mm pitch allows for significant pin count in minimal board area. Verify that the PCB footprint aligns with the specified SMD dimensions. Consider the shielding requirements for the specific application environment.

Headers, Male Pins Part Context

This connector belongs to the DF19 series, designed for miniaturization in portable electronics. The series supports various termination styles including wire-to-board and FPC connections. The G suffix typically indicates shielding features, while P denotes male pins. This specific model represents a high-pin-count variant for complex signal routing.

Headers, Male Pins Replacement Considerations

DF19G-30P-1H(56)

Headers, Male Pins FAQ

What is the contact material used in this connector?

The contacts are manufactured from phosphor bronze and feature gold plating.

Does this connector include shielding?

Yes, it features a three-wall shield design to improve electromagnetic interference protection.
