DF1B-10DP-2.5DSA

Headers, Male Pins Overview

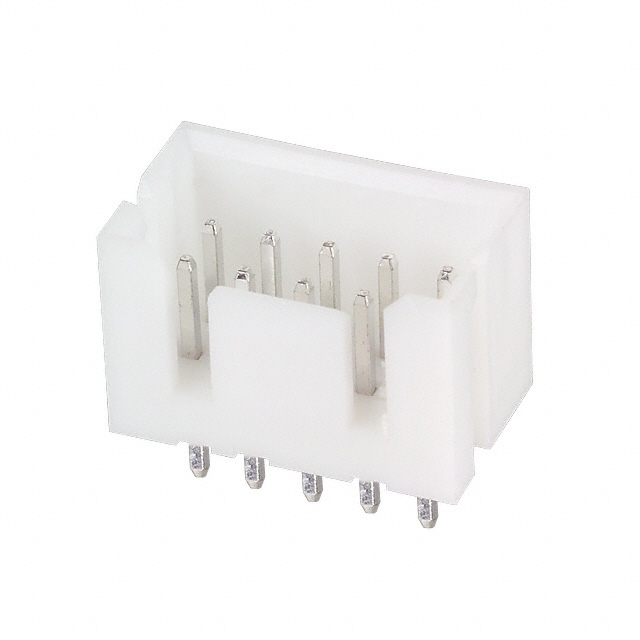

The DF1B-10DP-2.5DSA(01) is a shrouded, double-row header connector from the Hirose DF1B series. It features 10 positions with a 2.5 mm pitch and straight through-hole solder termination. The contacts are gold-plated brass pins rated for 3 A at 250 V. The housing is white polyamide (PA) with UL94 V-0 flammability rating. Operating temperature range is -35°C to +85°C. Unit weight is 1.160 g. Factory pack quantity is 100 units.

Headers, Male Pins Feature Summary

• Double-row shrouded design for secure mating alignment
• Gold-plated brass contacts for reliable conductivity
• Through-hole mounting with solder pin termination
• Polyamide insulation with UL94 V-0 flame retardancy

Headers, Male Pins Applications

• Wire-to-board interconnections in industrial equipment
• Consumer electronics internal circuit board connections
• Automotive control module interfaces
• Telecommunications hardware assembly

Headers, Male Pins Procurement Notes

Verify part number suffixes carefully as they denote specific packaging or material variations. Confirm RoHS compliance status via official datasheet before procurement. Check manufacturer lead times for availability. Ensure storage conditions maintain component integrity prior to assembly. Validate compatibility with mating connectors in the DF1B series.

Headers, Male Pins Selection Notes

Select this connector when a double-row, 2.5 mm pitch header is required for through-hole PCB mounting. Consider the 10-position count and straight orientation for layout constraints. Verify current and voltage ratings meet circuit requirements. Ensure housing color and material properties align with environmental and aesthetic specifications of the final product.

Headers, Male Pins Part Context

This component belongs to the Hirose DF1B series, which offers various position counts and row configurations. The DF1B series is designed for high-density applications requiring reliable wire-to-board connections. Similar parts include DF1B-10DP-2.5DS(01) for right-angle mounting and DF1EC-10P-2.5DSA(36) for single-row configurations.

Headers, Male Pins Replacement Considerations

DF1B-10DP-2.5DS(01) offers right-angle mounting instead of straight. DF1EC-10P-2.5DSA(36) provides single-row configuration with latch retention. Verify mechanical fit and electrical ratings before substitution. Contact Hirose Electric for approved alternative part numbers.
