DF1E-5P-2.5DS(35)

Headers, Male Pins Overview

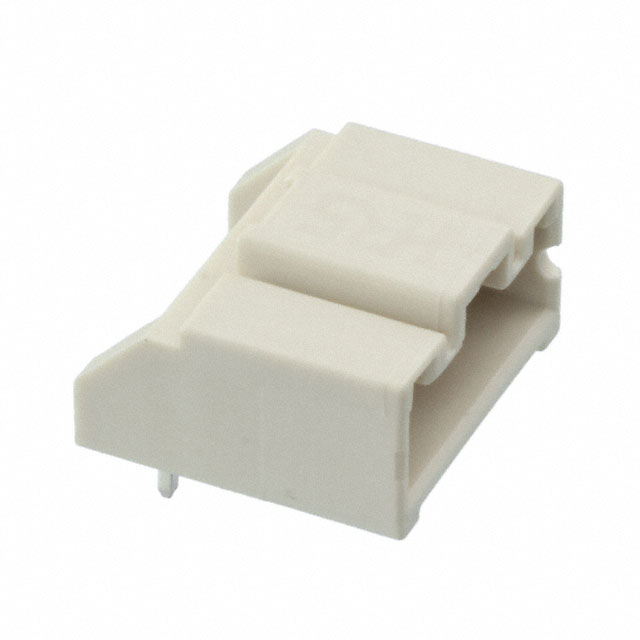

The Hirose DF1E-5P-2.5DS(35) is a 5-position wire-to-board header connector from the DF1E series, designed for compact electronic assemblies. It features a 2.5 mm pitch and right-angle through-hole mounting configuration with tin-plated brass contacts. The connector supports a current rating of 3 A and a voltage rating of 250 V. Constructed with polyamide (PA) housing rated UL 94 V-0, it operates within a temperature range of -35°C to +85°C. The shrouded design ensures secure mating, while the bulk packaging facilitates standard assembly processes.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting for space-efficient PCB integration
• Shrouded housing design prevents misalignment during mating
• Tin-plated brass contacts ensure reliable conductivity
• Polyamide insulation provides thermal stability and flame resistance

Headers, Male Pins Applications

• Compact consumer electronics assemblies
• Industrial control board interconnections
• Wire-to-board signal transmission systems

Headers, Male Pins Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number with official datasheets. Confirm that the specific suffix matches the required right-angle orientation and contact plating specifications. Ensure compliance with RoHS directives and check for any end-of-life notices or production change notifications prior to procurement.

Headers, Male Pins Selection Notes

Select this model when a low-profile, right-angle connection is required for 5-wire interfaces. The 2.5 mm pitch accommodates standard wire gauges while maintaining a compact footprint. Consider the through-hole termination method for robust mechanical fixation in environments subject to vibration or thermal cycling.

Headers, Male Pins Part Context

This component belongs to the Hirose DF1E series, which specializes in high-density, low-profile connectors for modern electronics. The series offers various pin counts and orientations to support diverse board layouts. The DF1E-5P variant specifically addresses applications requiring five distinct signal or power paths in a constrained spatial environment.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 5-position, 2.5 mm pitch right-angle headers from compatible manufacturers. Verify mechanical dimensions, contact material, and insulation ratings before substitution. Alternative Hirose models within the same series may offer different plating options or packaging formats.
