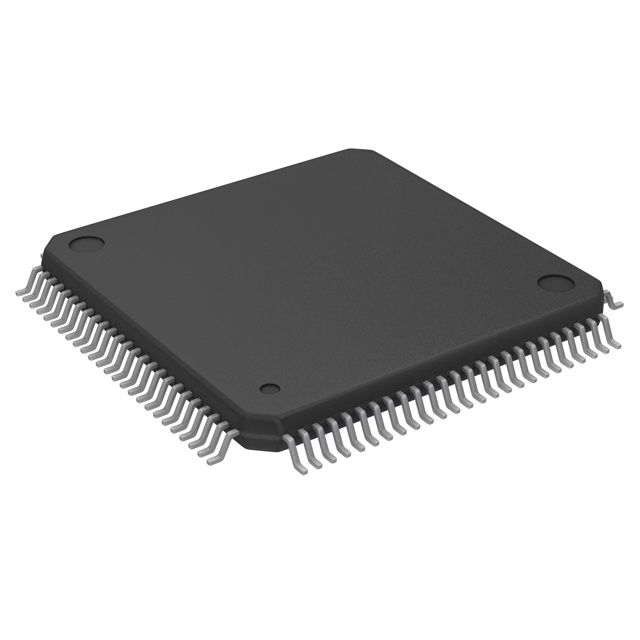

DF2145BVFA10V is listed in the Microcontrollers range at ChipApex. The manufacturer field lists Renesas Electronics Corporation. Its product description is IC MCU 16BIT 256KB FLASH 100QFP. Review the specifications below when checking this part for your BOM.
Microcontrollers specifications for DF2145BVFA10V
- Description：IC MCU 16BIT 256KB FLASH 100QFP
- Series：H8® H8S/2100
- Mfr：Renesas Electronics Corporation
- Package：Tray
- Core Processor：H8S/2000
- Core Size：16-Bit
- Speed：10MHz
- Connectivity：Host Interface (LPC), I2C, IrDA, SCI, X-Bus
- Peripherals：PWM, WDT
- Number of I/O：74
- Program Memory Size：256KB (256K x 8)
- Program Memory Type：FLASH
- EEPROM Size：-
- RAM Size：8K x 8
- Voltage - Supply (Vcc/Vdd)：2.7V ~ 3.6V
- Data Converters：A/D 8x10b; D/A 2x8b
- Oscillator Type：Internal
- Operating Temperature：-20°C ~ 75°C (TA)
- Mounting Type：Surface Mount
- Supplier Device Package：100-QFP (14x14)
- Package / Case：100-BFQFP
- Grade：-
- Qualification：-
Microcontrollers datasheet and documents for DF2145BVFA10V
Microcontrollers Overview
The DF2145BVFA10V is a 16-bit microcontroller from the Renesas H8S/2000 series, housed in a 100-pin FQFP package. It features 256KB of flash memory and operates within a temperature range of -20°C to 75°C. The device includes an internal oscillator, ADC, DAC, DMA channels, and PWM capabilities.
Microcontrollers Feature Summary
- Integrates 16-bit CPU architecture with substantial program storage capacity
- Includes built-in analog-to-digital and digital-to-analog converters
- Supports direct memory access for efficient data transfer operations
- Features pulse width modulation channels for motor control applications
Microcontrollers Applications
- General-purpose system control
- Office equipment automation
- Industrial motor control systems
Microcontrollers Procurement Notes
Verify component authenticity through authorized Renesas distributors. Confirm package integrity and pin alignment upon receipt. Check manufacturing date codes against project timelines. Ensure compliance with RoHS directives if required by local regulations. Validate part markings match official datasheet specifications exactly.
Microcontrollers Selection Notes
Consider the H8S/2000 series compatibility with existing software ecosystems. Evaluate pin count requirements against available I/O lines. Assess thermal performance needs within the specified operating temperature range. Review peripheral availability such as timers and communication interfaces for specific design constraints.
Microcontrollers Part Context
This component belongs to the H8S/2100 group within the broader H8S family. It serves as a mid-range solution for embedded applications requiring moderate processing power and integrated peripherals. The series is known for reliability in industrial and consumer electronics environments.
Microcontrollers Replacement Considerations
Consult Renesas documentation for cross-references. Verify electrical compatibility and pinout correspondence before substitution. Ensure firmware adaptation efforts are accounted for during transition planning.
