DF22-3P-7.92DSA(35)

Headers, Male Pins Overview

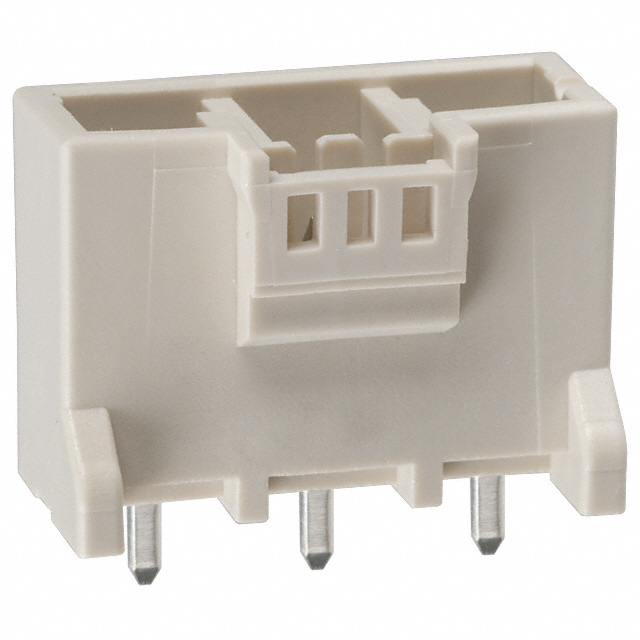

The DF22-3P-7.92DSA(35) is a vertical power header connector from the Hirose EnerBee DF22 series, designed for board-to-wire applications. It features three male pin contacts with a 7.92 mm (0.312 inch) pitch and utilizes through-hole solder termination. The unit is rated for 25 A current and 1000 V voltage, operating within a temperature range of -35°C to 85°C. Constructed with beige polyamide insulation and copper alloy terminals, it includes a four-wall shroud and latching bracket. This component is currently classified as obsolete and no longer manufactured.

Headers, Male Pins Feature Summary

• High-voltage capability up to 1000V for robust power distribution
• Integrated four-wall shroud and latching bracket for secure mating
• Through-hole mounting with tin-plated copper alloy pins
• UL94 V-0 flammability rating for enhanced safety

Headers, Male Pins Applications

• Industrial control systems requiring high-voltage interconnects
• Power supply units and distribution boards
• Heavy-duty machinery electrical connections

Headers, Male Pins Procurement Notes

This component has reached End-of-Life status and is no longer in production. Procurement should focus on verifying the authenticity of remaining stock from authorized distributors or secondary markets. Buyers must confirm the specific suffix and manufacturing date code, as availability is limited to existing inventory only. Replacement planning is strongly recommended due to discontinuation.

Headers, Male Pins Selection Notes

Select this part only if legacy compatibility with the DF22 series is required. Verify that the 7.92 mm pitch and 3-position configuration match the PCB layout. Ensure the 25A current rating and 1000V insulation withstand voltage meet the system's electrical demands. Consider thermal management requirements given the -35°C to 85°C operating range and verify that the through-hole assembly process aligns with manufacturing capabilities.

Headers, Male Pins Part Context

Part of the EnerBee DF22 family, designed for high-power board-to-wire connections. The DF22 series emphasizes high voltage and current capacity with secure mechanical locking. This specific model represents a discontinued variant within the broader Hirose power connector portfolio, historically used in applications demanding reliable high-energy transmission.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this exact obsolete specification. Users should consult Hirose Electric for current equivalent series or custom solutions compatible with the 7.92mm pitch and 3-position requirement.
