DF2215RTE24V

Microcontrollers Overview

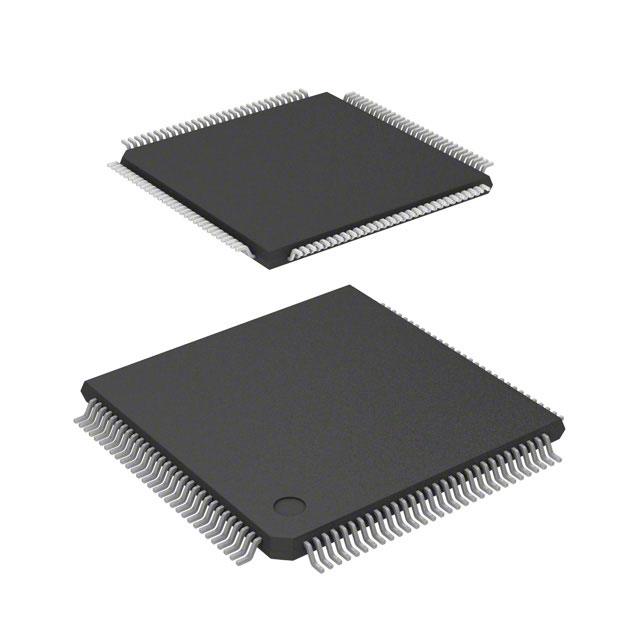

The DF2215RTE24V is a 16-bit microcontroller from the H8S/2000 series, manufactured by Renesas Electronics Corporation. It features 256KB of Flash program memory and 20KB of RAM. The device operates at a maximum clock frequency of 24MHz and supports a supply voltage range of 3.0V to 3.6V. It is housed in a 120-TQFP (14x14) surface-mount package with 68 I/O lines. Integrated peripherals include six 10-bit ADC channels, two 8-bit DAC channels, SCI, smart card interfaces, USB capabilities, DMA, PWM, and a watchdog timer.

Microcontrollers Feature Summary

• Integrates high-speed 16-bit processing with substantial non-volatile storage for complex embedded applications.
• Provides versatile connectivity options including serial communication, smart card support, and universal serial bus interfaces.
• Includes analog-to-digital conversion and digital-to-analog conversion capabilities for signal processing tasks.

Microcontrollers Applications

• Industrial control systems requiring robust data handling and peripheral integration
• Smart card reader devices utilizing dedicated interface support
• USB-enabled embedded controllers needing reliable 16-bit architecture

Microcontrollers Procurement Notes

Verify component authenticity through authorized distributors due to obsolete status. Confirm package integrity and pin alignment against datasheet specifications. Check for moisture sensitivity level compliance prior to soldering. Ensure replacement parts match electrical characteristics if sourcing alternatives. Validate RoHS compliance documentation for regulatory adherence.

Microcontrollers Selection Notes

Select this component for projects requiring 16-bit performance with extensive memory resources. Consider the 120-pin TQFP footprint for PCB layout constraints. Evaluate the 24MHz speed against system timing requirements. Assess the availability of development tools compatible with the H8S/2000 core. Verify power supply voltage compatibility with the 3.0V to 3.6V operating range.

Microcontrollers Part Context

This microcontroller belongs to the H8S/2200 group within the broader H8 family. It shares architectural similarities with other members like the DF2215CUTE24WV but differs in specific memory configurations and package types. The device represents a legacy solution for industrial applications, now marked as obsolete by the manufacturer.

Microcontrollers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult official Renesas documentation for potential cross-references or newer generation replacements suitable for the H8S/2000 architecture.
