DF50A-13P-1V(51)

Headers, Male Pins Overview

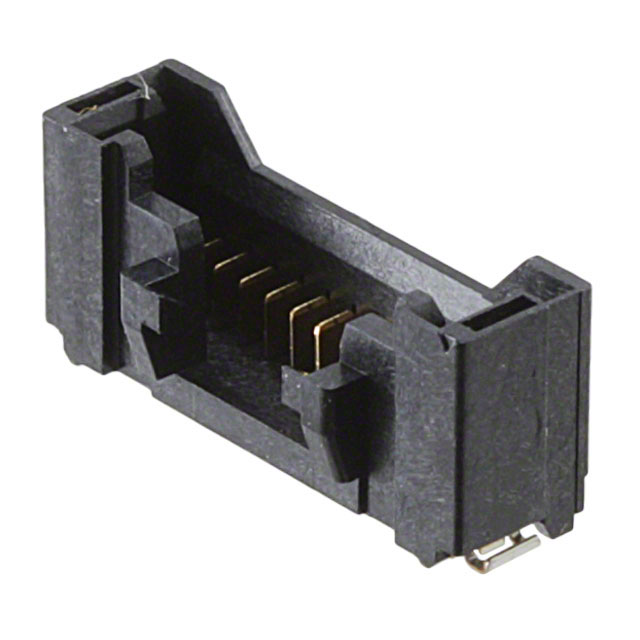

The DF50A-13P-1V(51) is a shrouded, single-row wire-to-board header manufactured by Hirose Electric. It features 13 positions with a 1.0 mm pitch and utilizes gold-plated brass contacts for reliable signal transmission. Designed for surface mount technology (SMT), the connector operates within a temperature range of -35°C to +85°C. It supports a maximum voltage of 100 V and a current rating of 1 A. The housing is constructed from black liquid crystal polymer (LCP) or polyester, offering UL94 V-0 flammability ratings.

Headers, Male Pins Feature Summary

• Shrouded four-wall design ensures correct mating alignment and protects contacts during assembly.
• Surface mount termination facilitates automated placement and secure PCB attachment.
• Gold-plated brass contacts provide corrosion resistance and stable electrical conductivity.

Headers, Male Pins Applications

• Consumer electronics internal interconnections
• Wearable device circuit board connections
• Smart appliance control modules

Headers, Male Pins Procurement Notes

Verify the specific suffix (51) corresponds to the required reel or cut tape packaging configuration. Confirm that the LCP or polyester insulation material matches thermal requirements. Ensure the SMT footprint aligns with the manufacturer's recommended land pattern to prevent soldering defects during reflow processes.

Headers, Male Pins Selection Notes

Select this component when a low-profile, high-density connection is required for wire-to-board applications. The 1.0 mm pitch allows for compact board layouts compared to standard headers. Consider the 1 A current rating for power distribution needs and ensure the operating environment stays within the specified -35°C to +85°C range for optimal performance.

Headers, Male Pins Part Context

This part belongs to the DF50 Series, known as SignalBee, which focuses on small-sized, low-profile connectors for modern electronic devices. The series supports various configurations including pin and socket housings. The DF50A variant specifically denotes the header component designed for surface mounting, complementing the corresponding socket housings in the same family.

Headers, Male Pins Replacement Considerations

Direct substitutes are not explicitly listed in public documentation. Compatible alternatives must match the 1.0 mm pitch, 13-position count, SMT mounting style, and shrouded design. Verify mechanical dimensions and electrical ratings before substituting to ensure board compatibility.
