DF51KB-6DP-2DS(800)

Headers, Male Pins Overview

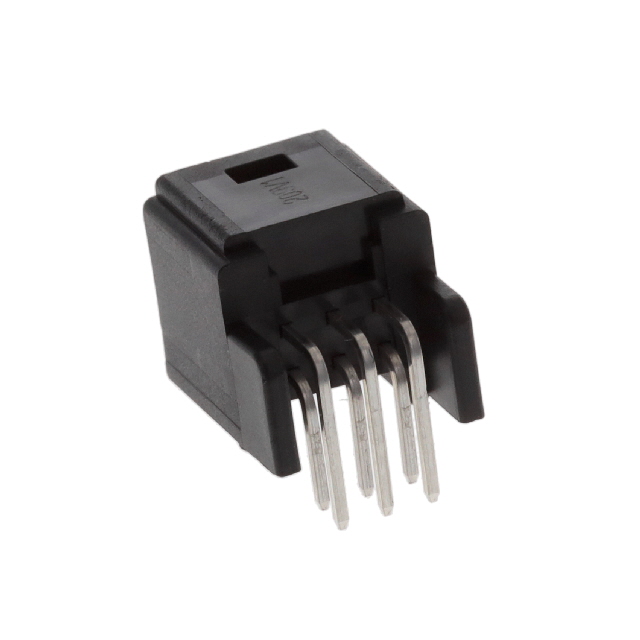

The DF51KB-6DP-2DS(800) is a SignalBee DF51 series pin header manufactured by Hirose Electric Co Ltd. It features a 6-position, 2-row configuration with a 2 mm (0.079 inch) pitch. Designed for wire-to-board applications, this connector utilizes through-hole right-angle mounting and solder pin termination. The housing is constructed from black Polybutylene Terephthalate (PBT) with a UL 94 V-0 flammability rating. It supports a voltage rating of 250VAC/DC and operates within a temperature range of -55°C to +105°C.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting design for compact board integration
• Latch-lock locking style ensures secure mechanical connection
• High-temperature resistant PBT insulation material

Headers, Male Pins Applications

• Wire-to-board interconnections in industrial equipment
• Signal transmission in consumer electronics assemblies
• Communication module interfaces requiring robust connectivity

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Hirose documentation to ensure correct pin count and orientation. Confirm that the required mating receptacle belongs to the same DF51K series family for proper compatibility. Check current availability status as lead times may vary based on production schedules and regional distribution channels.

Headers, Male Pins Selection Notes

Select this component when a right-angle, through-hole header is required for 2mm pitch systems. Ensure the PCB layout accommodates the right-angle profile and sufficient clearance for the latch mechanism. Verify that the mating cable or harness uses compatible contacts designed for the DF51K series interface specifications.

Headers, Male Pins Part Context

This part belongs to the Hirose SignalBee DF51K series, which provides high-density interconnect solutions. The series is characterized by its small footprint and reliable performance in space-constrained environments. The DF51KB variant specifically denotes the right-angle header configuration within this product line.

Headers, Male Pins Replacement Considerations

Direct substitutes include other DF51K series headers with matching 6-position and 2mm pitch specifications. Compatible alternatives must maintain the same right-angle through-hole mounting style and latch-lock mechanism to ensure interchangeability without redesigning the PCB footprint.
