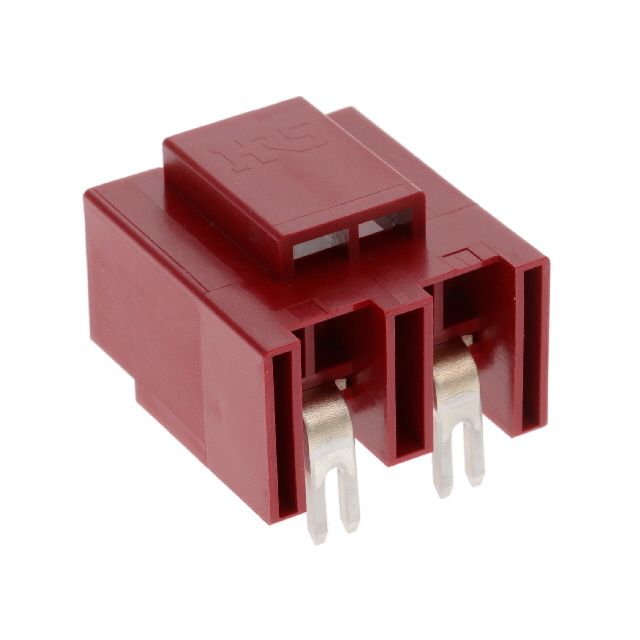

DF60-2P-10.16DS(45)

$2.98

Description：CONN HDR 2POS 10.16MM R/A
Series：EnerBee™ DF60
Mfr：Hirose Electric Co Ltd
Package：Tray

SKU:c46a793f2628 Category: Headers, Male Pins Brand: Hirose Electric Co Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DF60-2P-10.16DS(45) is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is CONN HDR 2POS 10.16MM R/A. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for DF60-2P-10.16DS(45)

Description：CONN HDR 2POS 10.16MM R/A
Series：EnerBee™ DF60
Mfr：Hirose Electric Co Ltd
Package：Tray
Connector Type：Header
Contact Type：Male Blade
Pitch - Mating：0.400" (10.16mm)
Number of Positions：2
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Latch Holder
Contact Length - Mating：-
Contact Length - Post：0.150" (3.81mm)
Overall Contact Length：-
Insulation Height：0.683" (17.35mm)
Contact Shape：Rectangular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：8.00µin (0.203µm)
Contact Finish - Post：Gold
Contact Material：Copper Alloy
Insulation Material：Polybutylene Terephthalate (PBT)
Features：Board Lock
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Red
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：1000VAC/DC

Headers, Male Pins datasheet and documents for DF60-2P-10.16DS(45)

DF60-2P-10.16DS(45)

Headers, Male Pins Overview

The DF60-2P-10.16DS(45) is a Hirose Electric power-to-board header connector from the DF60 series, designed for high-current applications. It features a 2-position configuration with a 10.16 mm pitch and utilizes right-angle through-hole solder termination. The connector supports a rated current of 65 A and withstands voltages up to 1 kVAC/DC. Constructed with gold-plated contacts and PBT insulation, it operates within a temperature range of -55°C to +105°C.

Headers, Male Pins Feature Summary

High current capacity of 65 A for robust power delivery
Right-angle design facilitates compact board layout integration
Gold-plated contact surfaces ensure reliable conductivity
Rated for 1 kVAC/DC voltage isolation

Headers, Male Pins Applications

Internal power distribution in industrial equipment
Power supply connections in heavy machinery
High-current wiring harnesses for automotive systems

Headers, Male Pins Procurement Notes

Verify the specific suffix (45) against official datasheets to confirm physical dimensions and packaging details. Ensure compatibility with mating sockets and wire gauges specified for the 65 A rating. Confirm RoHS compliance status and lead times directly with authorized distributors or the manufacturer.

Headers, Male Pins Selection Notes

Select this component when high current handling and voltage isolation are critical requirements. The right-angle form factor is suitable for space-constrained designs requiring perpendicular board mounting. Verify that the operating environment stays within the specified -55°C to +105°C range and that mating connectors match the 10.16 mm pitch.

Headers, Male Pins Part Context

This part belongs to the Hirose DF60 series, which specializes in high-power wire-to-board interconnects. The series is engineered for demanding environments requiring significant current carrying capabilities and durable construction. The DF60 line typically includes various pin counts and termination styles to support diverse power distribution architectures.
