DF7-4P-3.96DSA

Headers, Male Pins Overview

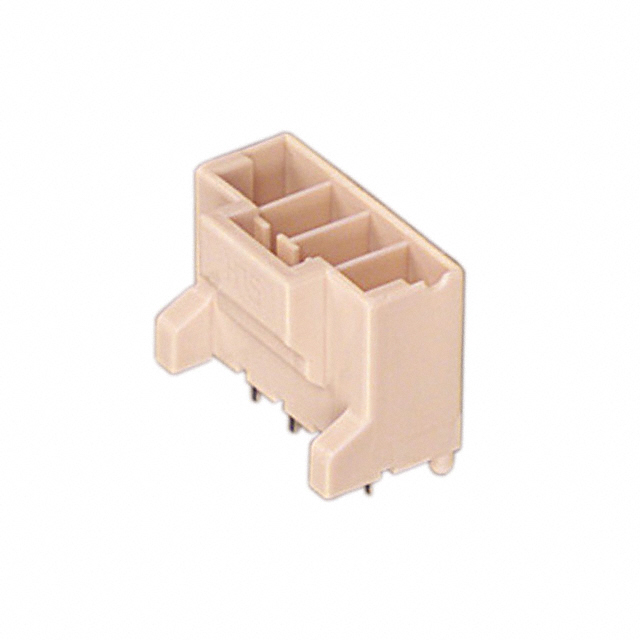

The DF7-4P-3.96DSA is a Hirose Electric header connector featuring a 3.96mm pitch and four positions. It utilizes through-hole termination with square male pins and a right-angle mounting style. The housing is constructed from polyamide (PA) with glass fiber reinforcement, rated UL94 V-0 for flammability. Contact surfaces are gold-plated copper alloy to ensure reliable conductivity. The component includes a four-wall shielded cover and operates within a temperature range of -35°C to 85°C.

Headers, Male Pins Feature Summary

• Right-angle through-hole design facilitates board-to-cable or board-to-wire connections.
• Gold-plated square pin contacts provide durable mating interfaces.
• Four-wall shielded cover enhances environmental protection during installation.

Headers, Male Pins Applications

• Internal power supply connections
• Miniature electronic device interconnects
• Industrial control system wiring

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact pin count and orientation. Check component status as older series items may be discontinued. Ensure compatibility with mating sockets regarding contact length and insulation height before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this model when a right-angle, shrouded header is required for internal power distribution. Confirm that the 3.96mm pitch matches the PCB layout and mating connector specifications. Verify that the operating temperature range meets the application's thermal requirements and that the UL listing satisfies regulatory standards.

Headers, Male Pins Part Context

This component belongs to the DF7 series of miniature connectors designed specifically for internal power supplies. The series offers various position counts and orientations to support compact electronic designs. It is widely used in applications requiring reliable, space-saving interconnect solutions with standardized spacing.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult the official Hirose Electric catalog for direct equivalents or updated series replacements if this specific item is discontinued.
