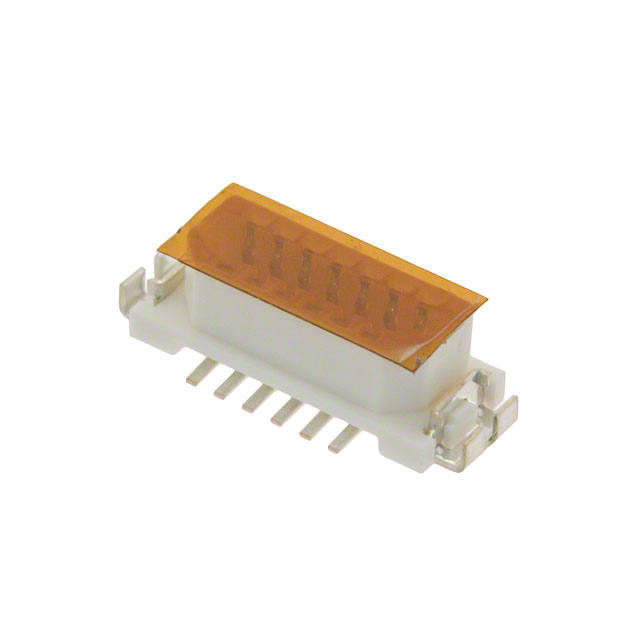

Arrays, Edge Type, Mezzanine (Board To Board) DF9-13S-1V(32) product image

DF9-13S-1V(32)

$0.93

Description：CONN RCPT 13POS SMD TIN
Series：DF9
Mfr：Hirose Electric Co Ltd
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:2ac556c59159 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Hirose Electric Co Ltd

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DF9-13S-1V(32) is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is CONN RCPT 13POS SMD TIN. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for DF9-13S-1V(32)

Description：CONN RCPT 13POS SMD TIN
Series：DF9
Mfr：Hirose Electric Co Ltd
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Receptacle, Outer Shroud Contacts
Number of Positions：13
Pitch：0.039" (1.00mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：Board Guide, Solder Retention
Contact Finish：Tin
Contact Finish Thickness：39.4µin (1.00µm)
Mated Stacking Heights：4.3mm
Height Above Board：0.130" (3.30mm)
