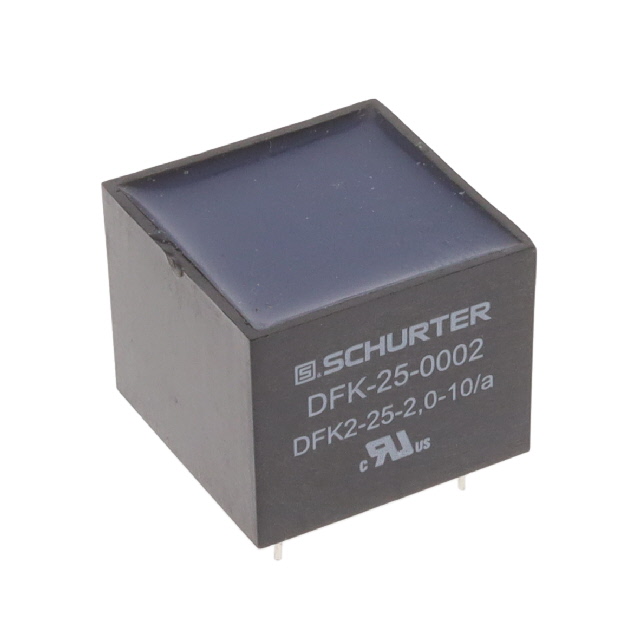

DFK-25-0002 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 2A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DFK-25-0002
- Description：CMC 2A 2LN TH
- Series：DFK
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：2A
- DC Resistance (DCR) (Max)：250mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-25°C ~ 100°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.984" L x 0.984" W (25.00mm x 25.00mm)
- Height (Max)：-
- Package / Case：Nonstandard
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DFK-25-0002
Common Mode Chokes Overview
The SCHURTER Inc. DFK-25-0002 is a 2-line common mode choke designed for through-hole mounting. It features a maximum current rating of 2A and a maximum DC resistance (DCR) of 250mOhm. This component is categorized under common mode chokes and is intended for electromagnetic interference (EMI) suppression applications.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression for two-line circuits
- Designed for through-hole installation on printed circuit boards
- Engineered to handle a maximum current rating of 2A
Common Mode Chokes Applications
- Electromagnetic interference (EMI) filtering in electronic equipment
- Power supply input stages requiring noise reduction
- Signal line protection against common mode disturbances
Common Mode Chokes Procurement Notes
Verify the exact part number DFK-25-0002 with the manufacturer or authorized distributor before ordering. Confirm that the 2A current rating and 250mOhm DCR specifications meet your circuit requirements. Ensure compatibility with through-hole assembly processes. Check for any recent product change notices or obsolescence announcements from SCHURTER Inc. regarding this specific component.
Common Mode Chokes Selection Notes
Select this component when a 2-line common mode choke with a 2A rating is required for through-hole mounting. The 250mOhm DCR specification should be evaluated against voltage drop constraints in the application. Consider the physical size and lead spacing if board space is limited. Verify that the EMI suppression performance aligns with regulatory standards for the target market.
Common Mode Chokes Part Context
The DFK-25-0002 belongs to SCHURTER Inc.'s range of common mode chokes, which are passive components used to suppress high-frequency noise. These chokes operate by presenting high impedance to common mode signals while allowing differential mode signals to pass. They are essential for ensuring electromagnetic compatibility in various electronic devices.
Common Mode Chokes Replacement Considerations
Publicly confirmed substitute part numbers for DFK-25-0002 were not found in the provided source material. Consult SCHURTER Inc. or authorized distributors for verified alternatives that match the 2A rating, 250mOhm DCR, and through-hole package specifications.
Common Mode Chokes FAQ
What is the maximum current rating for the DFK-25-0002?
The maximum current rating for the DFK-25-0002 is 2A.
What type of mounting does the DFK-25-0002 support?
The DFK-25-0002 supports through-hole mounting.
What is the maximum DC resistance of the DFK-25-0002?
The maximum DC resistance (DCR) of the DFK-25-0002 is 250mOhm.
