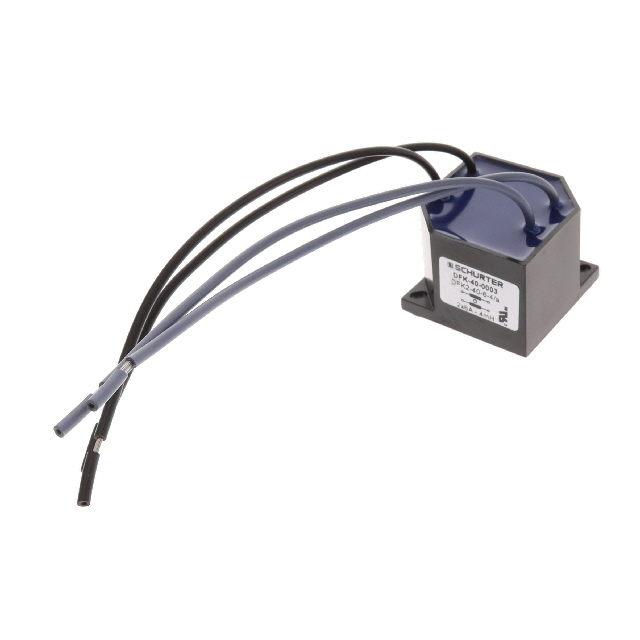

DFK-40-0003 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 6A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DFK-40-0003
- Description：CMC 6A 2LN TH
- Series：DFK
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：6A
- DC Resistance (DCR) (Max)：27mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-25°C ~ 100°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.575" L x 1.575" W (40.00mm x 40.00mm)
- Height (Max)：-
- Package / Case：Nonstandard
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DFK-40-0003
Common Mode Chokes Overview
The Schurter DFK-40-0003 is a two-line common mode choke designed for through-hole mounting. It features a maximum DC current rating of 6A and an inductance of 4 mH. The component has a maximum DC resistance (DCR) of 27 milliohms. It utilizes lead wire termination and is constructed with a depth of 40mm. This current compensated noise suppression choke is suitable for RF inductor applications.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression for two-line circuits
- Utilizes current compensated choke technology
- Features through-hole lead wire termination
Common Mode Chokes Applications
- RF inductor applications
- Current compensated noise suppression
- General purpose inductor circuits
Common Mode Chokes Procurement Notes
Verify the manufacturer part number DFK-40-0003 against official Schurter documentation to confirm specifications. Ensure compatibility with through-hole mounting requirements and lead wire termination styles. Check that the 6A current rating and 4mH inductance meet system design needs. Confirm compliance with relevant industry standards before integration.
Common Mode Chokes Selection Notes
Select this component for applications requiring common mode filtering with a 6A current capacity. The 4mH inductance value supports effective noise suppression in RF contexts. Verify that the 27mOhm DCR aligns with power loss constraints. Ensure the physical dimensions and lead wire style fit the PCB layout and assembly process.
Common Mode Chokes Part Context
This component belongs to the DFK series of common mode chokes from Schurter. It is categorized as a current compensated noise suppression choke. The series is designed for general purpose inductor applications requiring robust noise filtering capabilities in electronic circuits.
Common Mode Chokes Replacement Considerations
Public confirmed substitute part numbers are not available in the provided source material. Consult official Schurter documentation or authorized distributors for verified equivalent components.
