DFK-40-0005

Common Mode Chokes Overview

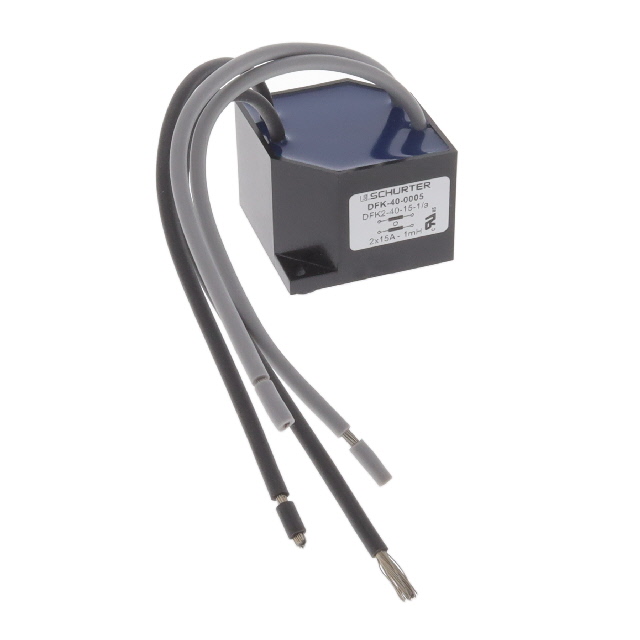

The Schurter DFK-40-0005 is a through-hole common mode choke belonging to the DFK2-40 series. It features a 15A maximum current rating and two-line configuration. The component utilizes wire termination for chassis or panel mounting applications. It is designed for noise suppression in power circuits, offering reliable performance within standard industrial operating temperature ranges.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for two-line configurations
• Supports high current handling up to 15A
• Utilizes through-hole wire termination for secure installation

Common Mode Chokes Applications

• Power supply input filtering
• Industrial equipment noise suppression
• AC line interference reduction

Common Mode Chokes Procurement Notes

Verify the specific part number DFK-40-0005 against official Schurter documentation to confirm current availability and technical specifications. Ensure compatibility with existing circuit designs regarding current ratings and physical mounting requirements before procurement.

Common Mode Chokes Selection Notes

Select this component when designing systems requiring robust common mode chokes for two-line AC or DC applications. Consider the 15A current capacity and through-hole construction for durability in industrial environments where effective noise filtration is critical for system stability.

Common Mode Chokes Part Context

This component is part of Schurter's DFK series, which focuses on electromagnetic compatibility solutions. The DFK2-40 variant specifically addresses high-current noise suppression needs, providing a compact yet powerful solution for maintaining signal integrity in electrically noisy environments.

Common Mode Chokes Replacement Considerations

Consult Schurter's official cross-reference guides for verified substitutes. Ensure any replacement matches the 15A rating, two-line configuration, and through-hole mounting style to maintain circuit performance and safety standards.
