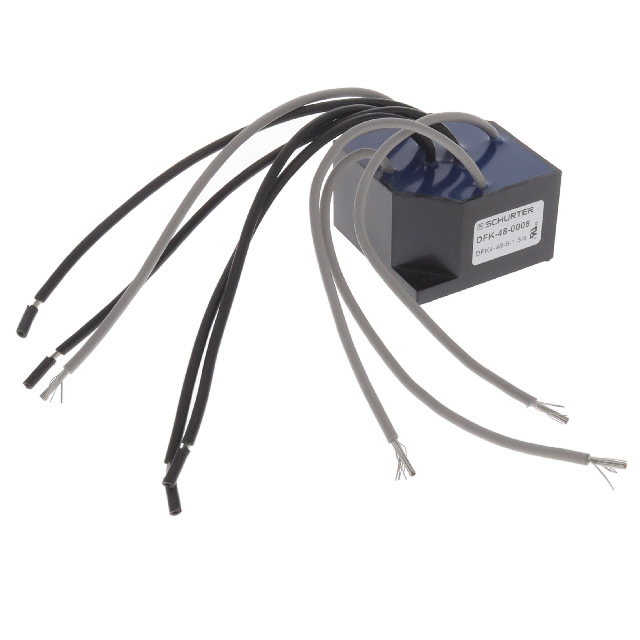

DFK-48-0008

$24.33

Description：CMC 6A 2LN TH
Series：DFK
Mfr：SCHURTER Inc.
Package：Bulk

SKU:ef80fda6f825 Category: Common Mode Chokes Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DFK-48-0008 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 6A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for DFK-48-0008

Description：CMC 6A 2LN TH
Series：DFK
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：6A
DC Resistance (DCR) (Max)：20mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.890" L x 1.890" W (48.00mm x 48.00mm)
Height (Max)：-
Package / Case：Nonstandard
Inductance @ Frequency：-

Common Mode Chokes datasheet and documents for DFK-48-0008

DFK-48-0008

Common Mode Chokes Overview

The DFK-48-0008 is a two-line common mode choke manufactured by SCHURTER Inc., designed for through-hole mounting. It features a rated current of 6A and a DC resistance (DCR) of 20mOhm. The component belongs to the common mode choke category within the company's filter product line.

Common Mode Chokes Feature Summary

Provides common mode noise suppression for two-line circuits
Supports through-hole installation for PCB integration
Rated for 6A continuous current operation

Common Mode Chokes Applications

Common mode filtering in electronic circuits
Power supply input stages requiring noise reduction

Common Mode Chokes Procurement Notes

Verify the specific datasheet for detailed electrical characteristics, including impedance curves and saturation current limits, as these are critical for circuit design. Confirm that the through-hole footprint matches the target PCB layout. Ensure compliance with RoHS3 standards if required by the end application specifications.

Common Mode Chokes Selection Notes

Select this component when a two-line common mode choke with a 6A rating is required. The low DC resistance of 20mOhm minimizes power loss in high-current paths. Consider the physical size and lead spacing for mechanical fitment during the initial design phase.

Common Mode Chokes Part Context

This part is part of SCHURTER's filter and inductor portfolio, specifically categorized under common mode chokes. It serves as a passive component for electromagnetic interference (EMI) suppression in AC/DC or DC/DC conversion systems where common mode noise attenuation is necessary.
