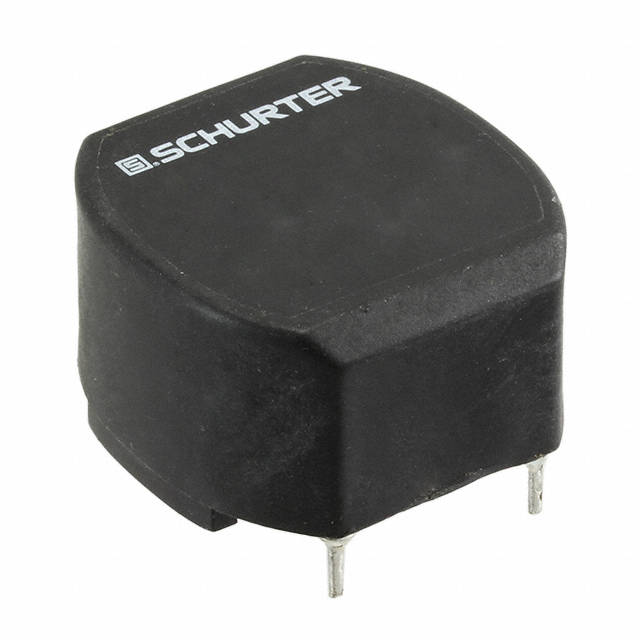

DFKF-28-0001

$3.43

Description：CMC 600MA 2LN TH
Series：DFKF
Mfr：SCHURTER Inc.
Package：Bulk

SKU:80d87af7f2e8 Category: Common Mode Chokes Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DFKF-28-0001 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 600MA 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for DFKF-28-0001

Description：CMC 600MA 2LN TH
Series：DFKF
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：600mA
DC Resistance (DCR) (Max)：1Ohm
Voltage Rating - DC：-
Voltage Rating - AC：440V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.114" L x 1.079" W (28.30mm x 27.40mm)
Height (Max)：-
Package / Case：Radial - 4 Leads
Inductance @ Frequency：-

Common Mode Chokes datasheet and documents for DFKF-28-0001

DFKF-28-0001

Common Mode Chokes Overview

The DFKF-28-0001 is a two-line common mode choke manufactured by SCHURTER Inc. It features a radial through-hole mounting style with four leads. The component is rated for a maximum current of 600mA and has a DC resistance of 1 Ohm. It complies with RoHS3 standards and carries an EAR99 classification.

Common Mode Chokes Feature Summary

Provides common mode noise suppression for two-line circuits
Designed for through-hole PCB mounting applications
RoHS3 compliant construction

Common Mode Chokes Applications

Electromagnetic interference filtering in electronic equipment
Signal integrity protection in data transmission lines
Power supply input filtering for low-current devices

Common Mode Chokes Procurement Notes

Verify the exact datasheet specifications directly from SCHURTER Inc. before integration, as distributor listings may vary. Confirm that the 600mA rating and 1 Ohm DC resistance meet your circuit requirements. Ensure the radial package dimensions fit your board layout constraints.

Common Mode Chokes Selection Notes

Select this component when a compact, two-line common mode choke is required for through-hole assembly. The 600mA current rating suits low-power signal or power line applications. Verify compatibility with your operating frequency range against the manufacturer's impedance curves.

Common Mode Chokes Part Context

This part belongs to the DFKF series of compensated chokes from SCHURTER Inc. The series offers various current ratings and inductance values. The DFKF-28-0001 specifically targets applications needing moderate noise attenuation with a standard radial footprint.
