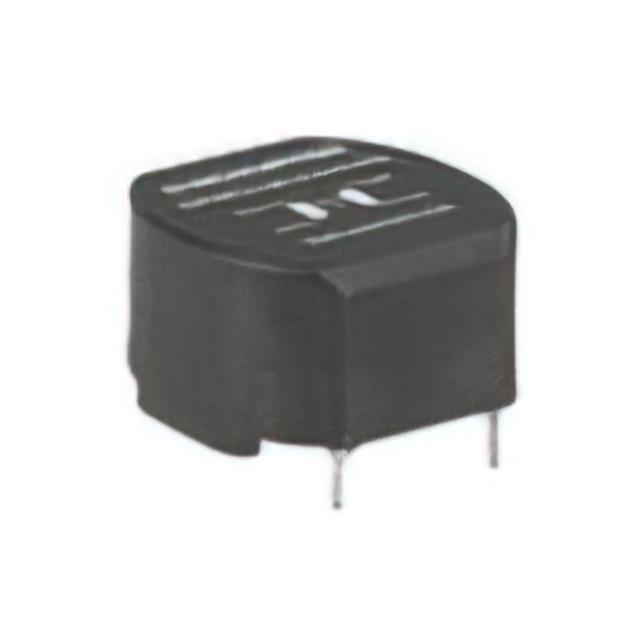

DFKF-28-0003

$3.52

Description：DFKF COMPENSATED CHOKE 1.4A 27MH
Series：DFKF
Mfr：SCHURTER Inc.
Package：Bulk

SKU:6f49f9cd0e04 Category: Common Mode Chokes Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DFKF-28-0003 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is DFKF COMPENSATED CHOKE 1.4A 27MH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for DFKF-28-0003

Description：DFKF COMPENSATED CHOKE 1.4A 27MH
Series：DFKF
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1.4A
DC Resistance (DCR) (Max)：310mOhm
Voltage Rating - DC：-
Voltage Rating - AC：440V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：cURus, UL
Features：-
Mounting Type：Through Hole
Size / Dimension：1.114" L x 1.079" W (28.30mm x 27.40mm)
Height (Max)：0.657" (16.70mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：-

Common Mode Chokes datasheet and documents for DFKF-28-0003

DFKF-28-0003

Common Mode Chokes Overview

The Schurter DFKF-28-0003 is a magnetically compensated common mode choke designed for single-phase applications. It features a flat design suitable for through-hole mounting on printed circuit boards. The component provides an inductance of 27 mH with a maximum DC current rating of 1.4 A and a maximum DC resistance of 0.31 Ohms.

Common Mode Chokes Feature Summary

Magnetically compensated construction minimizes stray magnetic fields
Flat profile facilitates compact PCB integration
Designed for single-phase common mode noise suppression

Common Mode Chokes Applications

Single-phase power line filtering
Common mode interference suppression in electronic equipment
PCB-mounted EMI mitigation circuits

Common Mode Chokes Procurement Notes

Verify the specific electrical parameters against the official manufacturer datasheet before integration. Confirm that the 27 mH inductance and 1.4 A current ratings align with the target circuit requirements. Ensure the through-hole footprint matches the PCB layout specifications to guarantee proper mechanical fit and electrical performance.

Common Mode Chokes Selection Notes

Select this component when a low-profile, magnetically compensated solution is required for single-phase lines. The 27 mH inductance offers significant attenuation for common mode noise. The 1.4 A current handling capacity suits moderate power applications. Verify thermal performance within the intended operating environment.

Common Mode Chokes Part Context

This part belongs to the DFKF series of common mode chokes from Schurter. These components are engineered for efficient electromagnetic interference reduction in compact spaces. The series utilizes magnetics compensation to reduce external field emissions, making them suitable for sensitive electronic assemblies where space and signal integrity are critical constraints.
