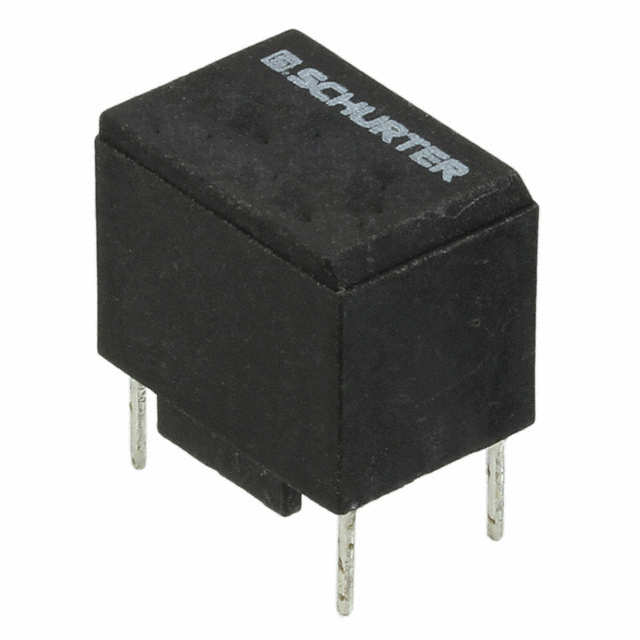

DFKH-14-0003 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 2A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DFKH-14-0003
- Description：CMC 2A 2LN TH
- Series：DFKH
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：2A
- DC Resistance (DCR) (Max)：65mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：440V
- Operating Temperature：-25°C ~ 100°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.591" L x 0.413" W (15.00mm x 10.50mm)
- Height (Max)：-
- Package / Case：Radial - 4 Leads
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DFKH-14-0003
Common Mode Chokes Overview
The DFKH-14-0003 is a magnetically compensated choke manufactured by Schurter Inc., designed for single-phase applications. It features a current rating of 2A and a maximum DC resistance of 65mOhm. The component operates within an AC voltage rating of 440V and supports a temperature range from -25°C to 100°C.
Common Mode Chokes Feature Summary
- Magnetically compensated design for single-phase circuits
- High design configuration for enhanced performance
Common Mode Chokes Applications
- Single-phase power line filtering
- Common mode noise suppression in electronic equipment
