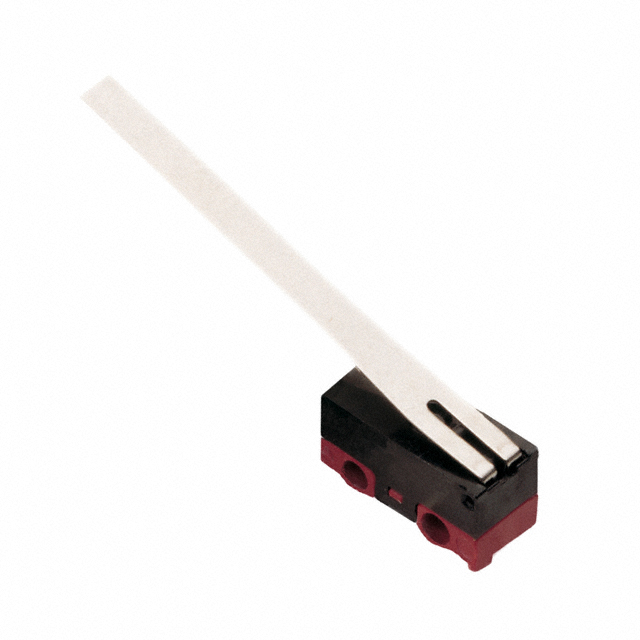

DG13-B2LA

DG13-B2LA is listed in the Limit Switches range at ChipApex. The manufacturer field lists ZF Electronics. Its product description is SWITCH SNAP ACTION SPDT 3A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for DG13-B2LA

• Description：SWITCH SNAP ACTION SPDT 3A 125V
• Series：DG
• Mfr：ZF Electronics
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：3A (AC), 2A (DC)
• Voltage Rating - AC：125 V
• Actuator Type：Lever, Straight
• Mounting Type：Through Hole, Right Angle
• Termination Style：PC Pin
• Ingress Protection：IP40
• Features：-
• Operating Force：45gf
• Release Force：-
• Operating Position：0.268" (6.8mm)
• Pretravel：0.071" (1.8mm)
• Differential Travel：0.020" (0.5mm)
• Overtravel：0.022" (0.55mm)
• Operating Temperature：-25°C ~ 85°C
• Voltage Rating - DC：30 V

Limit Switches datasheet and documents for DG13-B2LA
