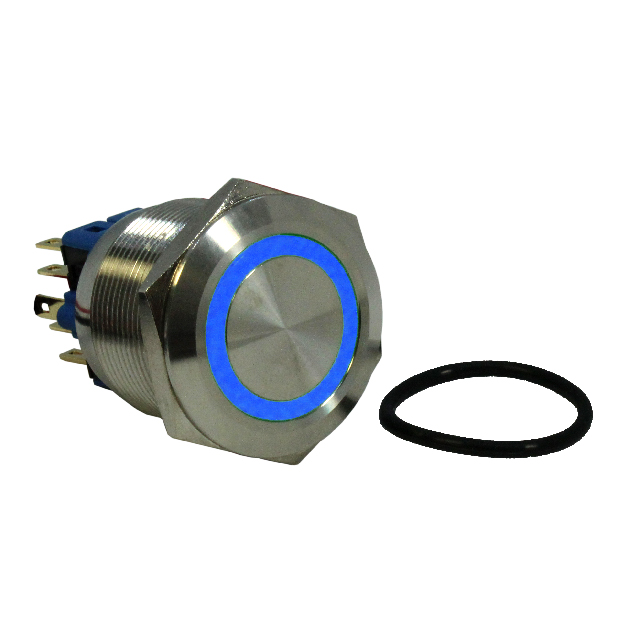

DH221LBSBN is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists CIT Relay and Switch. Its product description is SWITCH PB DPST-NO/NC 2A 125V. Review the specifications below when checking this part for your BOM.
Pushbutton Switches specifications for DH221LBSBN
- Description：SWITCH PB DPST-NO/NC 2A 125V
- Series：DH
- Mfr：CIT Relay and Switch
- Package：Tray
- Mounting Type：Panel Mount, Front
- Type：Anti-Vandal, Illuminated
- Circuit：SPST-NO + SPST-NC
- Switch Function：On-Off, Off-On
- Current Rating (Amps)：2A (AC/DC)
- Actuator Type：Round, Button, Flush
- Actuator Marking：-
- Color - Actuator/Cap：Silver
- Illumination Type, Color：LED, Blue
- Illumination Voltage (Nominal)：-
- Termination Style：Solder, Quick Connect - 0.110" (2.8mm)
- Ingress Protection：IP67 - Dust Tight, Waterproof
- Features：Stainless Steel
- Panel Cutout Dimensions：Circular - 22.00mm Dia
- Operating Temperature：-25°C ~ 70°C
- Voltage Rating - DC：24 V
- Voltage Rating - AC：125 V
Pushbutton Switches datasheet and documents for DH221LBSBN
