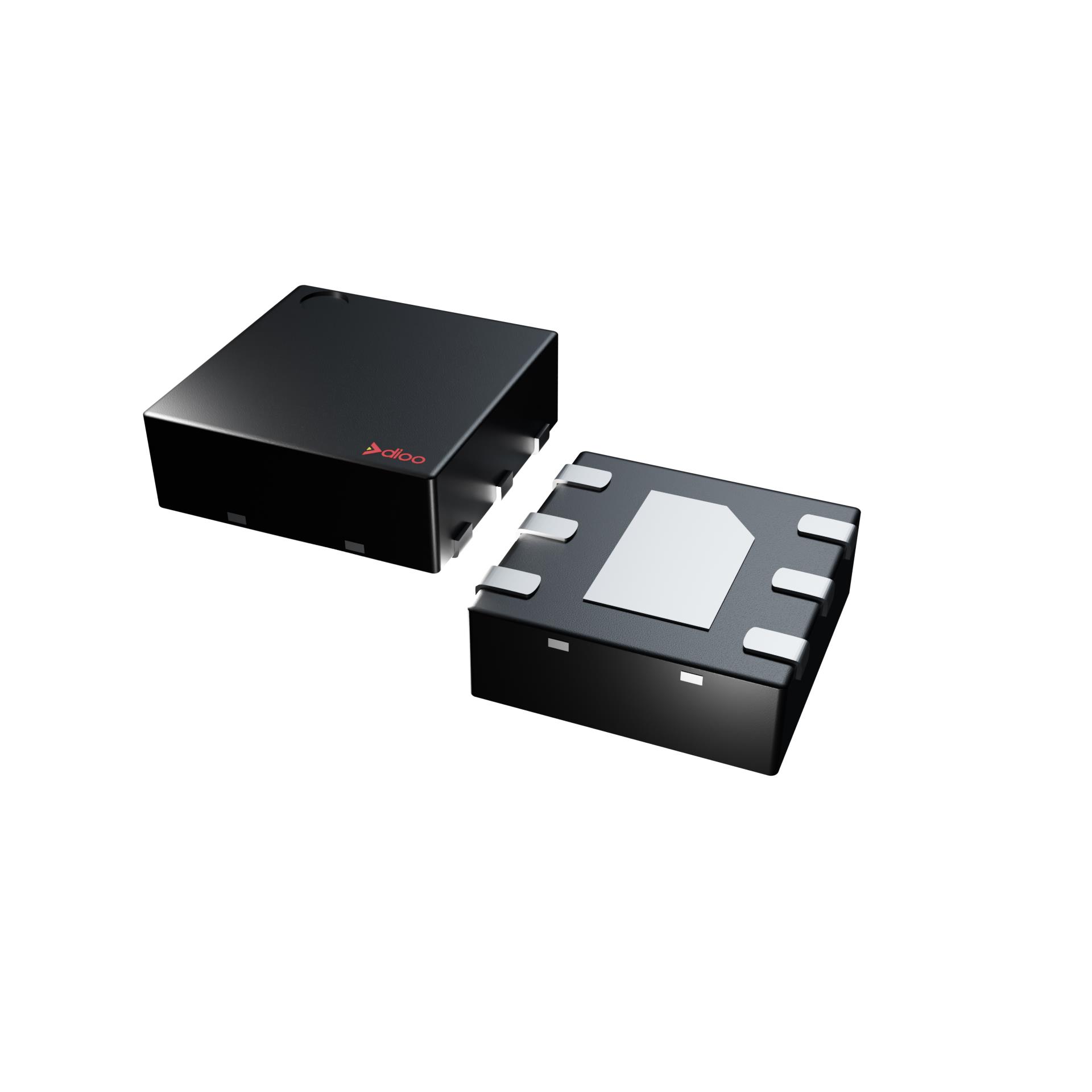

DIO6199DN6

$0.85

Description：Ultra Low Iq Boost Converter
Series：-
Mfr：Dioo Microcircuits Co., Ltd.
Package：Tape & Reel (TR)

SKU:5068a296cfe1 Category: Voltage Regulators - DC DC Switching Regulators Brand: Dioo Microcircuits Co., Ltd.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：Ultra Low Iq Boost Converter
Series：-
Mfr：Dioo Microcircuits Co., Ltd.
Package：Tape & Reel (TR)
Function：Step-Up
Output Configuration：Positive
Topology：Boost
Output Type：Adjustable
Number of Outputs：1
Voltage - Input (Min)：1.1V
Voltage - Input (Max)：5.5V
Voltage - Output (Min/Fixed)：2V
Voltage - Output (Max)：5.5V
Current - Output：-
Frequency - Switching：1MHz
Synchronous Rectifier：Yes
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Package / Case：6-WDFN Exposed Pad
Supplier Device Package：6-DFN (2x2)
Grade：-
Qualification：-

Download product information

DIO6199DN6

Overview

The DIO6199DN6 is a synchronous boost converter manufactured by Dioo Microcircuits, housed in a DFN-6 surface-mount package. It operates with an input voltage range of 2 V to 5.5 V and delivers up to 1 A output current. The device features ultra-low quiescent current for enhanced efficiency in battery-powered applications.

Feature Summary

Synchronous rectification topology for high conversion efficiency
Ultra-low quiescent current design for extended battery life
Integrated shutdown capability for power management

Applications

Portable consumer electronics
Battery-powered sensor modules
Mobile communication devices

Procurement Notes

Verify the specific manufacturer datasheet for the DIO6199DN6 to confirm pinout compatibility and electrical ratings before integration. Ensure that the supply chain source provides authentic components from Dioo Microcircuits to guarantee performance reliability and adherence to specified operating conditions.

Selection Notes

Select this component when designing circuits requiring step-up voltage conversion from low-voltage sources. The DFN-6 package suits space-constrained layouts, while the 1 A output capacity supports moderate load requirements typical in portable systems.

Part Context

This part belongs to the Dioo Microcircuits PMIC portfolio, specifically within the switching regulator category. It complements other Dioo products like the DIO6011 series by offering boost functionality rather than buck regulation, addressing different power architecture needs.
