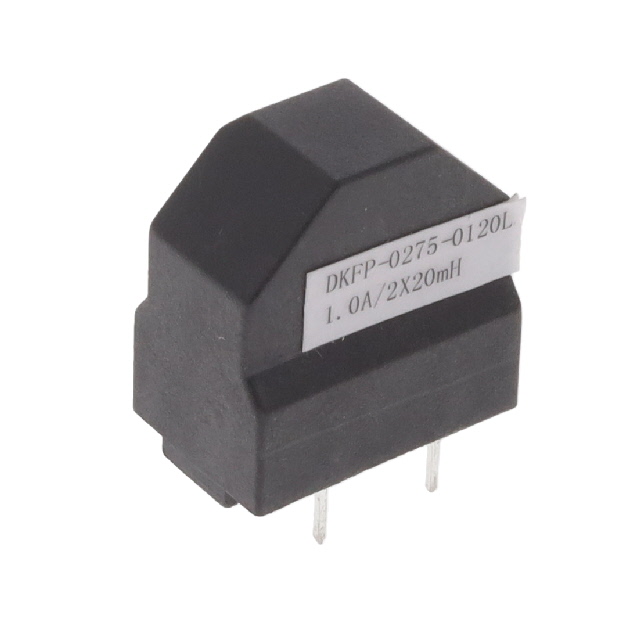

DKFP-0275-0120L is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DKFP-0275-0120L
- Description：CMC 2LN TH
- Series：DKFP
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：UR
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：-
- Height (Max)：-
- Package / Case：-
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DKFP-0275-0120L
Common Mode Chokes Overview
The DKFP-0275-0120L is a current compensated common mode choke from the Schurter DKFP series. It features radial through-hole mounting for PCB integration. The component provides an inductance of 12 mH with a maximum DC current rating of 1 A. Its maximum DC resistance is specified at 380 mohms, and it operates within a temperature range of -40 °C to +125 °C.
Common Mode Chokes Feature Summary
- Current compensated design for noise suppression
- Radial through-hole PCB mounting style
- High thermal stability up to 125 °C
Common Mode Chokes Applications
- Industrial electronic equipment
- Household appliances
- Medical equipment
Common Mode Chokes Procurement Notes
Verify the specific electrical parameters against the official Schurter datasheet before implementation. Confirm that the 1 A current rating and 12 mH inductance align with the target circuit requirements. Ensure the through-hole package dimensions fit the designated PCB footprint. Check for RoHS compliance status if required by project specifications.
Common Mode Chokes Selection Notes
Select this component when current compensation is required to maintain inductance under load conditions. The radial leaded format suits automated or manual insertion processes. Evaluate the thermal environment to ensure operation remains within the -40 °C to +125 °C range. Compare the 380 mohms resistance against voltage drop constraints in the application circuit.
Common Mode Chokes Part Context
This part belongs to the DKFP series of current compensated noise suppression chokes manufactured by Schurter. These components are engineered to provide effective common mode filtering while minimizing differential mode interference. The series is widely utilized in environments requiring robust electromagnetic compatibility solutions for sensitive electronic systems.
Common Mode Chokes Replacement Considerations
Consult the official Schurter documentation for verified substitute part numbers. Cross-reference inductance values and current ratings to ensure functional equivalence. Verify mechanical compatibility including lead spacing and housing dimensions before substitution.
