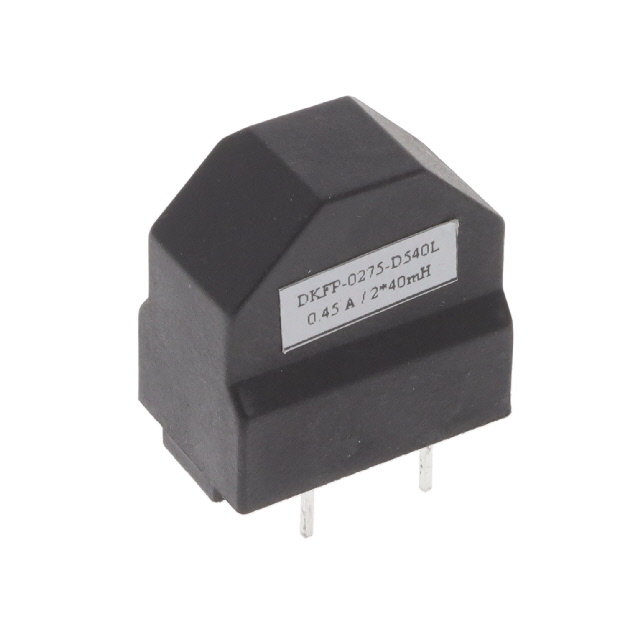

DKFP-0275-D540L is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DKFP-0275-D540L
- Description：CMC 2LN TH
- Series：DKFP
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：-
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：UR
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：-
- Height (Max)：-
- Package / Case：-
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DKFP-0275-D540L
Common Mode Chokes Overview
The DKFP-0275-D540L is a current compensated common mode choke from the Schurter DKFP series, designed for noise suppression in electronic circuits. It features a radial through-hole mounting style with a single channel configuration. Key electrical parameters include an inductance of 2 mH and a maximum DC current rating of 6 A. The component exhibits a maximum DC resistance of 50 mOhms and a self-resonant frequency of 500 kHz. It operates within a temperature range of -40°C to +125°C and carries UR approval agency certification.
Common Mode Chokes Feature Summary
- Current compensated design for effective noise suppression
- Radial through-hole PCB mounting for secure integration
- Single channel configuration for compact circuit layouts
Common Mode Chokes Applications
- Electronic equipment noise filtering
- Power supply input stages
- Signal line interference reduction
Common Mode Chokes Procurement Notes
Verify the specific part number suffix against official Schurter documentation to ensure correct electrical characteristics. Confirm that the required current rating and inductance values match the application design specifications before procurement. Check for any recent product change notices or obsolescence announcements directly from the manufacturer to avoid sourcing discontinued variants.
Common Mode Chokes Selection Notes
Select this component when a current compensated choke is required for high-current applications up to 6 A. Ensure the PCB layout supports radial through-hole termination and accommodates the physical dimensions of the DKFP series. Verify that the operating temperature environment falls within the specified -40°C to +125°C range for reliable performance.
Common Mode Chokes Part Context
This component belongs to the DKFP series of current compensated chokes manufactured by Schurter Inc. These devices are engineered for electromagnetic interference suppression in power and signal lines. The series offers various inductance and current ratings to suit different electronic design requirements while maintaining compact form factors.
Common Mode Chokes Replacement Considerations
Consult official Schurter substitution guides for verified alternatives. Cross-reference inductance, current rating, and physical dimensions to ensure compatibility with existing board layouts and circuit performance requirements.
