DKFP-6248-0102

Common Mode Chokes Overview

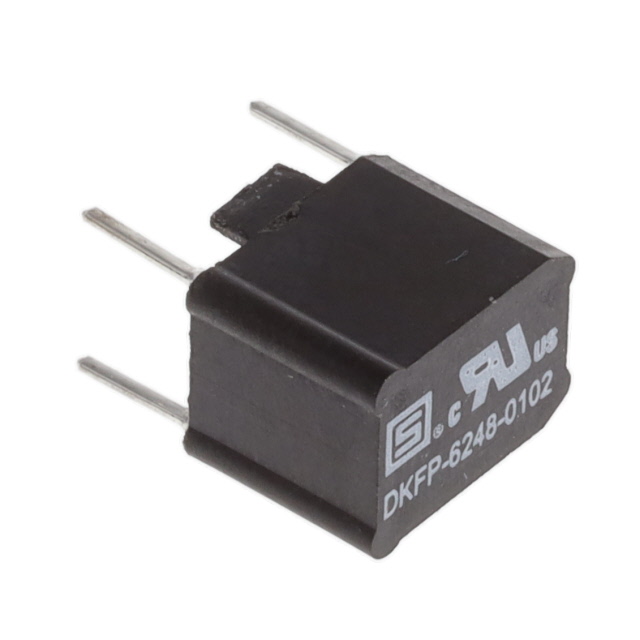

The Schurter DKFP-6248-0102 is a compact, magnetically compensated common mode choke designed for through-hole PCB mounting. It features two lines with a nominal inductance of 1 mH and supports a maximum DC current of 900 mA. The component exhibits a maximum DC resistance of 240 mOhms and operates within a temperature range of -40°C to +125°C.

Common Mode Chokes Feature Summary

• Magnetically compensated design minimizes stray magnetic fields
• Compact form factor suitable for space-constrained applications
• Through-hole termination for secure PCB integration

Common Mode Chokes Applications

• Noise suppression in low-power electronic circuits
• Common mode interference filtering in signal lines
• Power supply input stages requiring EMI reduction

Common Mode Chokes Procurement Notes

Verify the exact part number DKFP-6248-0102 against official Schurter documentation before procurement. Confirm that the 900 mA current rating and 1 mH inductance align with your specific circuit requirements. Ensure compatibility with through-hole assembly processes and check for any recent product change notifications or obsolescence notices from the manufacturer.

Common Mode Chokes Selection Notes

Select this component when a compact, magnetically balanced choke is required for common mode noise suppression. The 900 mA rating suits low-current applications. Verify that the 240 mOhm DCR meets voltage drop constraints. Ensure the operating temperature range covers your environmental conditions.

Common Mode Chokes Part Context

This component belongs to the DKFP series of current-compensated noise suppression chokes by Schurter. These components are engineered for efficient electromagnetic interference reduction in sensitive electronics, offering a balance between performance and physical size for modern PCB layouts.

Common Mode Chokes Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult Schurter directly for equivalent recommendations if this specific model is unavailable.
