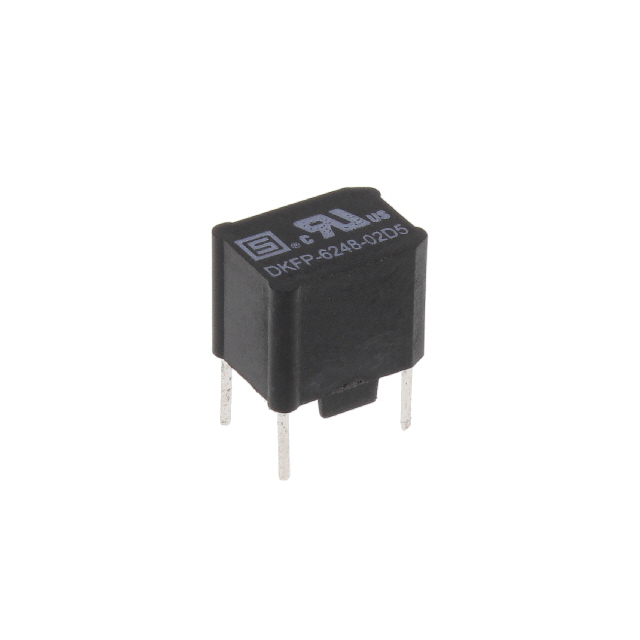

DKFP-6248-02D5 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 2A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DKFP-6248-02D5
- Description：CMC 2A 2LN TH
- Series：DKFP
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：2A
- DC Resistance (DCR) (Max)：50mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：UR
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.445" L x 0.354" W (11.30mm x 9.00mm)
- Height (Max)：-
- Package / Case：Nonstandard
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DKFP-6248-02D5
Common Mode Chokes Overview
The Schurter DKFP-6248-02D5 is a current compensated noise suppression choke designed for printed circuit board mounting. It features through-hole termination and operates within a temperature range of -40°C to +125°C. The component provides an inductance of 500 µH with a maximum DC resistance of 0.05 ohms and supports a DC current rating of 2 A.
Common Mode Chokes Feature Summary
- Current compensated design for effective common mode noise suppression
- Robust construction suitable for high-temperature environments up to 125°C
- Through-hole PCB mounting configuration for secure installation
Common Mode Chokes Applications
- Electromagnetic compatibility filtering in electronic circuits
- Noise suppression in power supply input stages
- Signal integrity protection in sensitive digital systems
Common Mode Chokes Procurement Notes
Verify the exact part number against official Schurter documentation to ensure correct specifications. Confirm availability status as distribution channels may vary. Check for any specific handling requirements or compliance certifications relevant to your region before finalizing procurement decisions.
Common Mode Chokes Selection Notes
Select this component when a compact, high-performance common mode choke is required for PCB integration. Ensure the 2 A current rating and 500 µH inductance align with the circuit's noise filtering needs. Verify that the operating temperature range meets the environmental conditions of the target application.
Common Mode Chokes Part Context
This component belongs to the DKFP series of current compensated chokes from Schurter. These components are engineered for EMC applications, offering high attenuation in a small footprint. The series is known for reliability in industrial and consumer electronics where space constraints and performance are critical factors.
Common Mode Chokes Replacement Considerations
Consult Schurter's official cross-reference guides for verified substitutes. Ensure any replacement matches the 500 µH inductance, 2 A current rating, and 0.05 ohm DC resistance. Verify pinout compatibility and mechanical dimensions for direct PCB replacement.
