DKFP-6248-D504

$4.50

Description：CMC 500MA 2LN TH
Series：DKFP
Mfr：SCHURTER Inc.
Package：Bulk

SKU:374a02fd90d1 Category: Common Mode Chokes Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DKFP-6248-D504 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 500MA 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for DKFP-6248-D504

Description：CMC 500MA 2LN TH
Series：DKFP
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：500mA
DC Resistance (DCR) (Max)：500mOhm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：UR
Features：-
Mounting Type：Through Hole
Size / Dimension：0.445" L x 0.354" W (11.30mm x 9.00mm)
Height (Max)：-
Package / Case：Nonstandard
Inductance @ Frequency：-

Common Mode Chokes datasheet and documents for DKFP-6248-D504

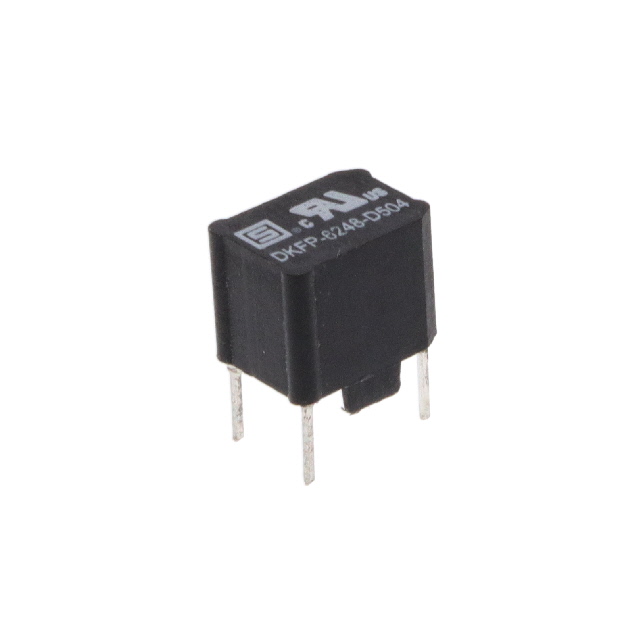

DKFP-6248-D504

Common Mode Chokes Overview

The DKFP-6248-D504 is a current compensated choke manufactured by Schurter Inc. It features an inductance of 4 mH and supports a maximum DC current of 0.5 A. The component has a DC resistance (DCR) of 500 mOhm and utilizes a through-hole mounting style with an 8.75 mm lead spacing.

Common Mode Chokes Feature Summary

Magnetically compensated design for compact applications
Common mode choke configuration

Common Mode Chokes Applications

Electromagnetic interference suppression
Signal line filtering

Common Mode Chokes Procurement Notes

Verify the exact part number DKFP-6248-D504 against official Schurter documentation to confirm specifications. Ensure compatibility with required inductance, current ratings, and physical dimensions before procurement. Check for RoHS compliance status as per latest manufacturer data sheets.

Common Mode Chokes Selection Notes

Select this component when a compact, magnetically compensated common mode choke is required for signal lines. Consider the 0.5 A current rating and 4 mH inductance values. Verify that the through-hole package and 8.75 mm lead spacing fit the target PCB layout constraints.

Common Mode Chokes Part Context

This component belongs to Schurter's DKFP series of current compensated chokes. These components are designed for compact electromagnetic interference suppression in electronic circuits. The series offers magnetically balanced performance suitable for sensitive signal applications.
