DKFP-G22G-D5J0

$3.04

Description：CMC 500MA 2LN TH
Series：DKFP
Mfr：SCHURTER Inc.
Package：Bulk

SKU:fe21caeaa0de Category: Common Mode Chokes Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DKFP-G22G-D5J0 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 500MA 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for DKFP-G22G-D5J0

Description：CMC 500MA 2LN TH
Series：DKFP
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：500mA
DC Resistance (DCR) (Max)：3.1Ohm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：UR
Features：-
Mounting Type：Through Hole
Size / Dimension：1.339" L x 1.299" W (34.00mm x 33.00mm)
Height (Max)：-
Package / Case：Nonstandard
Inductance @ Frequency：-

Common Mode Chokes datasheet and documents for DKFP-G22G-D5J0

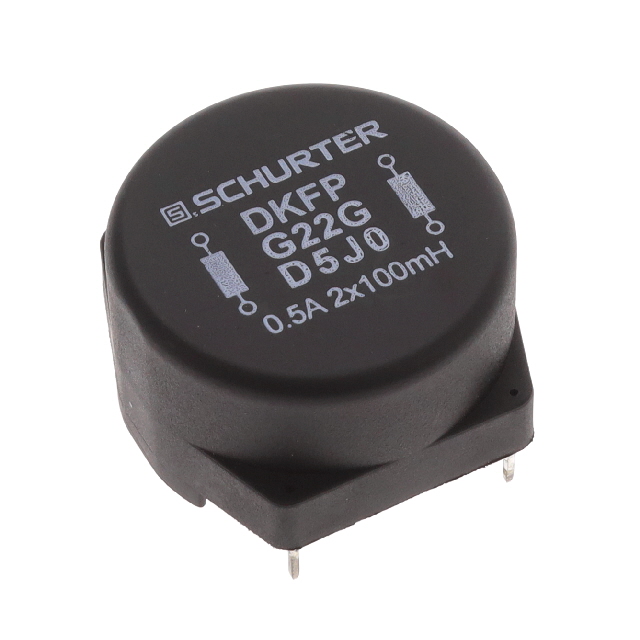

DKFP-G22G-D5J0

Common Mode Chokes Overview

The DKFP-G22G-D5J0 is a magnetically compensated common mode choke manufactured by SCHURTER Inc. It features through-hole mounting and operates within a temperature range of -40°C to +125°C. The component has dimensions of 34.00mm length by 33.00mm width. Electrical specifications include a maximum DC current of 500mA and a DC resistance of 3.1 Ohms.

Common Mode Chokes Feature Summary

Provides current-compensated noise suppression for single-phase applications
Utilizes a compact design suitable for space-constrained PCB layouts
Supports through-hole termination for secure board integration

Common Mode Chokes Applications

Noise filtering in compact electronic devices
Power supply input stages requiring EMI suppression
Industrial control systems with limited mounting space

Common Mode Chokes Procurement Notes

Verify the exact part number DKFP-G22G-D5J0 against official SCHURTER documentation before procurement. Confirm that the 500mA rating and 3.1 Ohm DCR match your circuit requirements. Ensure compatibility with through-hole assembly processes. Check for any recent product change notifications or obsolescence notices from the manufacturer.

Common Mode Chokes Selection Notes

Select this component when a low-profile, current-compensated choke is required for single-line noise reduction. The 500mA current rating suits low-power signal lines or auxiliary power rails. Verify that the 34x33mm footprint fits the available PCB area. Consider the operating temperature range if the environment exceeds standard limits.

Common Mode Chokes Part Context

This component belongs to the DKFP series of magnetically compensated chokes from SCHURTER. These components are designed to suppress common mode interference while maintaining signal integrity due to their current-compensated nature. The series offers various current ratings and inductance values to suit different application needs.
