DKFP-H22H-063R

Common Mode Chokes Overview

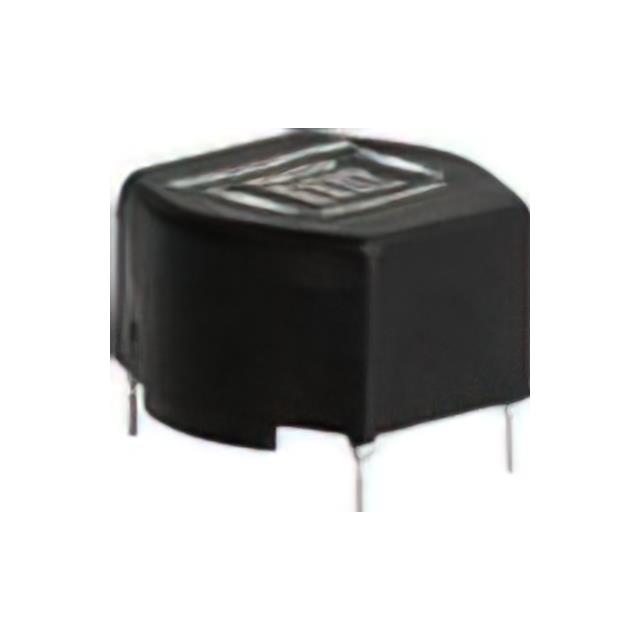

The DKFP-H22H-063R is a current compensated noise suppression choke from the Schurter DKFP series. It features through-hole PCB mounting with one channel. Key electrical parameters include an inductance of 3.9 mH, maximum DC current of 6 A, and maximum DC resistance of 15 mohms. The self-resonant frequency is 850 kHz. Operating temperature range spans from -40°C to +125°C. Physical dimensions are 29 mm length, 28 mm width, and 17 mm height.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for power lines
• Utilizes current compensated design for efficient filtering
• Supports through-hole PCB mounting for secure installation

Common Mode Chokes Applications

• Power supply input filtering
• Noise suppression in industrial equipment
• EMC compliance in electronic devices

Common Mode Chokes Procurement Notes

Verify the exact part number DKFP-H22H-063R against manufacturer datasheets to ensure correct specifications. Confirm lead times and availability directly with authorized distributors or Schurter. Check for RoHS compliance status if required by your project standards. Ensure proper handling procedures for through-hole components during assembly.

Common Mode Chokes Selection Notes

Select this component when high current handling up to 6 A is required alongside effective common mode noise reduction. Consider the physical footprint of 29x28x17 mm for PCB layout constraints. Evaluate the thermal performance within the -40°C to +125°C operating range for your specific environment.

Common Mode Chokes Part Context

This component belongs to the DKFP series of current compensated chokes designed for noise suppression. It is manufactured by Schurter, a provider of electronic components and systems. The series is known for robust construction and reliable performance in demanding applications.

Common Mode Chokes Replacement Considerations

Consult Schurter documentation for direct replacements. Verify compatibility of inductance, current rating, and physical dimensions before substituting.
