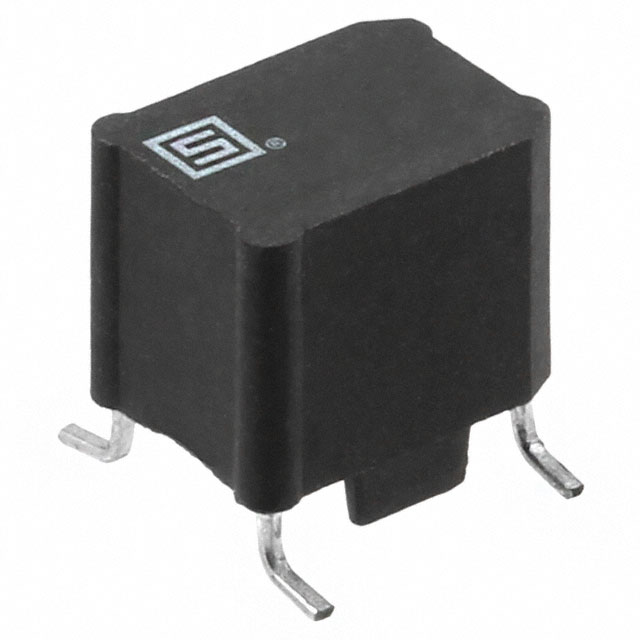

DKFS-6248-0102 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 900MA 2LN SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DKFS-6248-0102
- Description：CMC 900MA 2LN SMD
- Series：DKFS
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：900mA
- DC Resistance (DCR) (Max)：240mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 100°C
- Ratings：-
- Approval Agency：UR
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.421" L x 0.323" W (10.70mm x 8.20mm)
- Height (Max)：-
- Package / Case：4-SMD
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DKFS-6248-0102
Common Mode Chokes Overview
The DKFS-6248-0102 is a surface-mount common mode choke manufactured by SCHURTER Inc. It is designed for signal line applications, providing electromagnetic interference suppression in compact electronic assemblies. The component features a two-line configuration suitable for SMD mounting processes.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression for signal lines
- Designed for surface mount technology integration
- Compact footprint suitable for space-constrained PCB layouts
Common Mode Chokes Applications
- Signal line filtering in industrial equipment
- Noise suppression in consumer electronics
- EMI mitigation in automotive control modules
Common Mode Chokes Procurement Notes
Verify the exact part number DKFS-6248-0102 against official SCHURTER documentation to confirm current lifecycle status and RoHS compliance before procurement. Ensure compatibility with existing PCB footprints and soldering profiles. Cross-reference datasheet specifications for electrical parameters to validate suitability for the specific circuit requirements.
Common Mode Chokes Selection Notes
Select this component based on its specific inductance and current ratings required for the target signal line. Evaluate the physical dimensions to ensure they fit within the designated board area. Consider the operating temperature range and insulation characteristics to match environmental conditions. Confirm that the two-line configuration aligns with the circuit topology.
Common Mode Chokes Part Context
This component belongs to the DKFS series of common mode chokes from SCHURTER. These components are engineered for high-performance EMI filtering in modern electronic devices. The series offers various configurations to meet diverse design needs while maintaining reliability and compactness.
Common Mode Chokes Replacement Considerations
Consult SCHURTER's official substitution guide or contact technical support for verified alternative part numbers. Do not assume cross-compatibility with other manufacturers' components without rigorous testing and validation against original specifications.
