DKIH-3252-50D2

Common Mode Chokes Overview

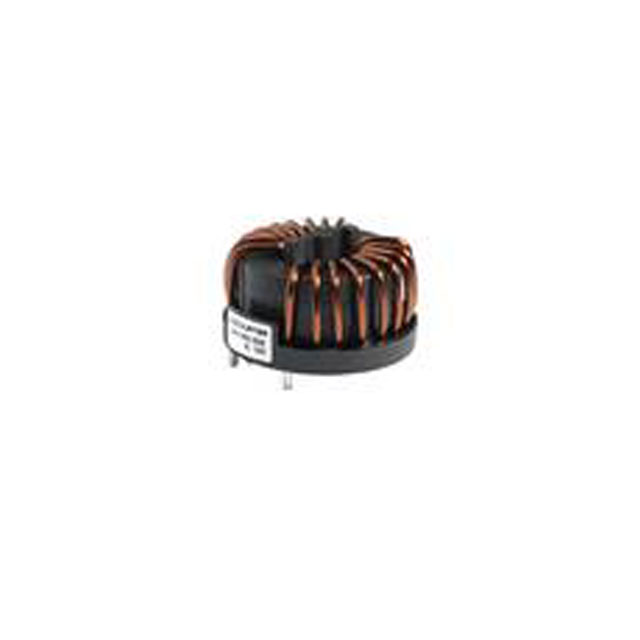

The DKIH-3252-50D2 is a compensated high current choke from the Schurter DKIH series, designed for single-phase PCB mounting. It features radial termination and an unshielded open construction. Key electrical parameters include a rated DC current of 50 A, an inductance of 150 µH, and a maximum DC resistance of 500 uOhms. The component operates within a temperature range of -40°C to +100°C and has a self-resonant frequency of 400 kHz.

Common Mode Chokes Feature Summary

• Compensated design for high current applications
• Open structure for lightweight and compact integration
• Radial PCB mount termination

Common Mode Chokes Applications

• Single-phase power supply EMI suppression
• PCB-mounted current compensation circuits
• High current filtering in industrial electronics

Common Mode Chokes Procurement Notes

Verify the specific part number suffix against official Schurter documentation to confirm exact inductance and tolerance values. Ensure the procurement channel provides valid RoHS compliance certificates. Confirm that the supplier source matches the manufacturer's authorized distribution network to guarantee component authenticity and traceability.

Common Mode Chokes Selection Notes

Select this component for single-phase applications requiring high current handling up to 50 A. The low DC resistance minimizes power loss in high-current paths. Verify that the PCB layout accommodates the radial lead spacing and physical dimensions. Consider the operating temperature range when designing thermal management strategies for enclosed environments.

Common Mode Chokes Part Context

This component belongs to the DKIH series of compensated high current chokes manufactured by Schurter Inc. The series offers various configurations for single and three-phase applications with rated currents ranging from 10 to 50 amperes. These chokes are engineered to suppress EMI noise generated by power applications directly on the printed circuit board.

Common Mode Chokes Replacement Considerations

The DKIH-3252-506J-NK is a similar single-phase compensated choke in the same series but differs in inductance value (1.4 mH vs 150 µH). Substitution requires verification of circuit compatibility due to significant differences in impedance characteristics.
