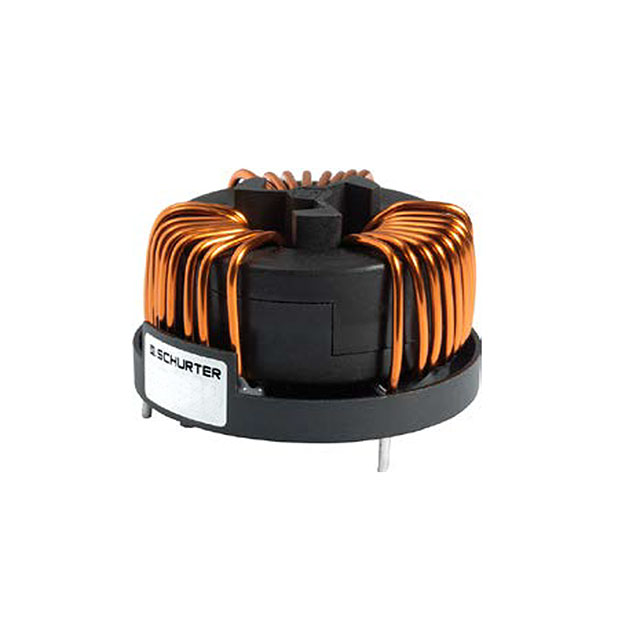

DKIH-3352-1011-NK is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 10A 3LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DKIH-3352-1011-NK
- Description：CMC 10A 3LN TH
- Series：DKIH
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：-
- Number of Lines：3
- Current Rating (Max)：10A
- DC Resistance (DCR) (Max)：7.5mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：600V
- Operating Temperature：-40°C ~ 100°C
- Ratings：-
- Approval Agency：ENEC, UR
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：2.087" Dia (53.00mm)
- Height (Max)：1.220" (31.00mm)
- Package / Case：Horizontal, 6 PC Pin
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DKIH-3352-1011-NK
Common Mode Chokes Overview
The SCHURTER DKIH-3352-1011-NK is a three-phase common mode choke designed for PCB mounting. It features radial termination and operates within a temperature range of -40°C to +100°C. The component provides an inductance of 10.8 mH per phase with a maximum DC current rating of 10 A. Its direct current resistance is specified at 7.5 mOhms, and it exhibits a self-resolving frequency of 2.5 MHz. The unit is unshielded and complies with RoHS standards.
Common Mode Chokes Feature Summary
- Provides high-current suppression for three-phase AC applications
- Utilizes through-hole radial termination for printed circuit board integration
- Designed as a compensated choke for effective noise filtering
Common Mode Chokes Applications
- Three-phase power supply input filtering
- Industrial equipment EMI suppression
- Common mode noise reduction in motor drives
Common Mode Chokes Procurement Notes
Verify the specific part number DKIH-3352-1011-NK against official Schurter documentation to confirm availability and specifications. Ensure compatibility with existing PCB layouts regarding radial pin spacing and height constraints. Check for any recent product change notifications or obsolescence notices directly from the manufacturer before finalizing procurement plans.
Common Mode Chokes Selection Notes
Select this component when designing three-phase systems requiring 10 A current handling with significant common mode noise attenuation. The 10.8 mH inductance offers substantial impedance for interference suppression. Consider the unshielded design and physical dimensions during layout planning to ensure adequate clearance and thermal management within the enclosure.
Common Mode Chokes Part Context
This component belongs to the Schurter DKIH-3 series, which comprises compensated high-current chokes for three-phase AC applications ranging from 10 to 50 amperes. The series is engineered for robust performance in industrial environments, providing reliable electromagnetic interference mitigation for sensitive electronic loads connected to three-phase power networks.
Common Mode Chokes Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult Schurter technical support for validated alternatives if this specific model is unavailable.
