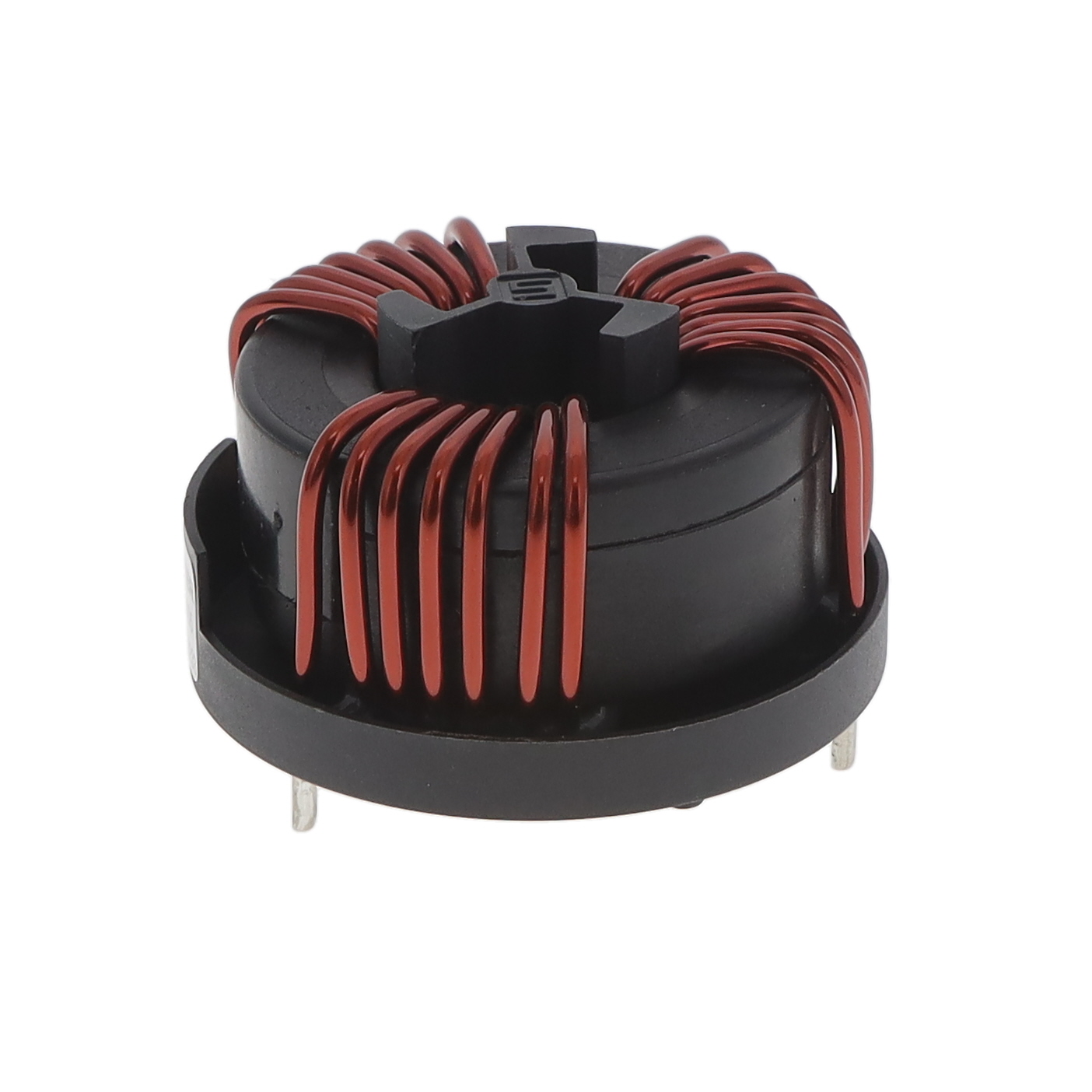

DKIH-3352-16D5 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 16A 3LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DKIH-3352-16D5
- Description：CMC 16A 3LN TH
- Series：DKIH
- Mfr：SCHURTER Inc.
- Package：Box
- Filter Type：Power Line
- Number of Lines：3
- Current Rating (Max)：16A
- DC Resistance (DCR) (Max)：3mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：600V
- Operating Temperature：-40°C ~ 100°C
- Ratings：-
- Approval Agency：ENEC, UR
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：2.087" Dia (53.00mm)
- Height (Max)：1.220" (31.00mm)
- Package / Case：Horizontal, 6 PC Pin
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DKIH-3352-16D5
Common Mode Chokes Overview
The Schurter DKIH-3352-16D5 is a three-phase current compensated common mode choke designed for through-hole mounting. It supports a maximum operating current of 16A and a voltage rating of 600V AC. The component features a low DC resistance of 3mOhm and operates within a resonant frequency range up to 0.5MHz. Its physical dimensions are 53x31mm, and it includes a flange for secure attachment to printed circuit boards.
Common Mode Chokes Feature Summary
- Three-phase current compensated design for effective noise suppression
- Through-hole terminals with integrated PCB mounting flange
- High current handling capability suitable for industrial applications
Common Mode Chokes Applications
- Industrial power supply filtering
- Three-phase motor drive noise reduction
- Electromagnetic interference suppression in high-current circuits
Common Mode Chokes Procurement Notes
Verify the specific datasheet version before procurement, as electrical characteristics such as inductance values may vary by revision. Confirm that the through-hole footprint and flange mounting style match the target PCB layout. Ensure the 16A current rating and 600V AC voltage withstand requirements align with the system's operational limits to prevent premature failure or insulation breakdown.
Common Mode Chokes Selection Notes
Select this component when three-phase common mode noise attenuation is required in high-current environments. The current compensated architecture minimizes core saturation under load. Verify that the 53x31mm form factor fits the available board space. Consider the 3mOhm DC resistance impact on overall system efficiency during thermal analysis.
Common Mode Chokes Part Context
This component belongs to Schurter's DKIH series of compensated high-current chokes. These components are engineered for robust performance in demanding industrial settings where stable inductance under high load conditions is critical. The series emphasizes reliability and compact integration for power electronics systems.
Common Mode Chokes Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing designs if sourcing alternatives from other manufacturers.
