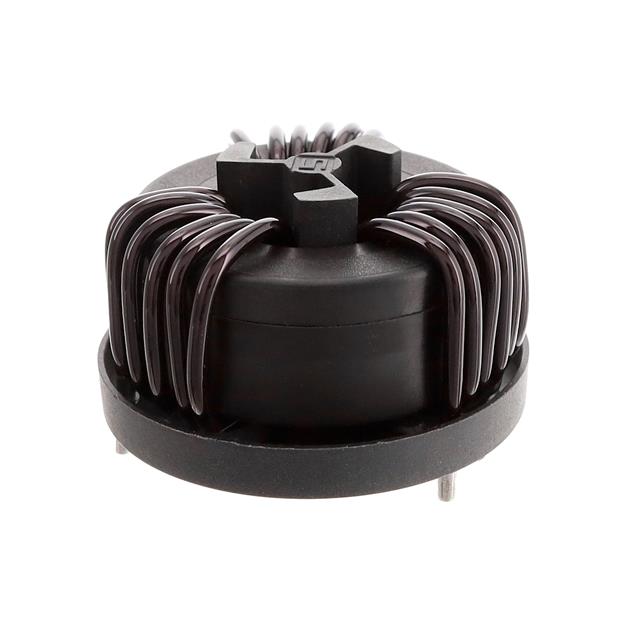

DKIH-3352-20D4 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 20A 3LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DKIH-3352-20D4
- Description：CMC 20A 3LN TH
- Series：DKIH
- Mfr：SCHURTER Inc.
- Package：Box
- Filter Type：Power Line
- Number of Lines：3
- Current Rating (Max)：20A
- DC Resistance (DCR) (Max)：1.5mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：600V
- Operating Temperature：-40°C ~ 100°C
- Ratings：-
- Approval Agency：ENEC, UR
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：2.087" Dia (53.00mm)
- Height (Max)：1.220" (31.00mm)
- Package / Case：Horizontal, 6 PC Pin
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DKIH-3352-20D4
Common Mode Chokes Overview
The DKIH-3352-20D4 is a three-phase common mode choke from the Schurter DKIH series, designed for through-hole mounting. It features a nano-crystalline core and supports a maximum DC current of 20 A with an inductance of 0.35 mH per phase. The component operates within a temperature range of -40 °C to +100 °C and has a self-resonant frequency of 2.5 MHz.
Common Mode Chokes Feature Summary
- Utilizes nano-crystalline core technology for high-performance filtering
- Designed for three-phase power line suppression applications
- Supports through-hole radial termination for PCB integration
Common Mode Chokes Applications
- Three-phase power supply input filtering
- Industrial equipment EMI suppression
- Power electronics noise reduction
Common Mode Chokes Procurement Notes
Verify the exact part number DKIH-3352-20D4 against official Schurter documentation to confirm specifications. Ensure compatibility with your circuit's current and voltage requirements before procurement.
Common Mode Chokes Selection Notes
Select this component for applications requiring robust three-phase common mode filtering. Consider the 20 A current rating and 0.35 mH inductance when designing for specific noise attenuation needs.
Common Mode Chokes Part Context
This component belongs to the DKIH series of common mode chokes manufactured by Schurter Inc., focusing on high-current applications with nano-crystalline cores.
Common Mode Chokes Replacement Considerations
Consult Schurter technical support or datasheets for verified equivalent parts. Do not substitute without confirming electrical and mechanical compatibility.
