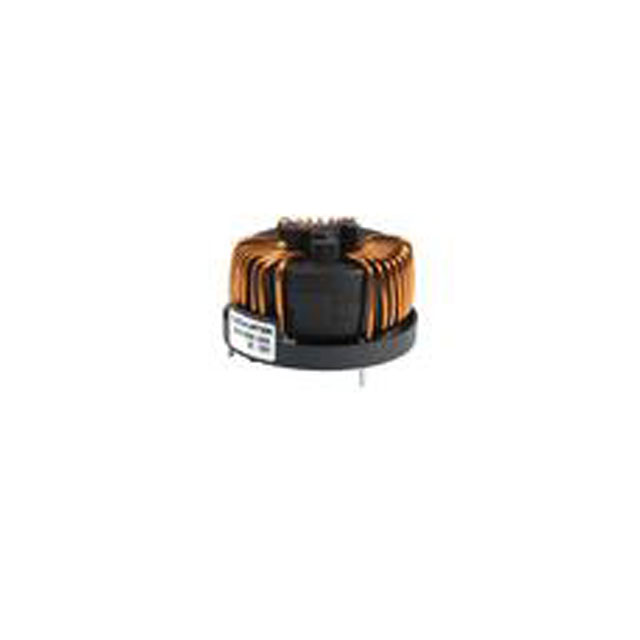

DKIH-3358-50C8

$16.48

Description：DKIH-3 COMP.CHOKE 3PH 50A 0.08MH
Series：DKIH
Mfr：SCHURTER Inc.
Package：Bulk

SKU:f630189d4a97 Category: Common Mode Chokes Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DKIH-3358-50C8 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is DKIH-3 COMP.CHOKE 3PH 50A 0.08MH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for DKIH-3358-50C8

Description：DKIH-3 COMP.CHOKE 3PH 50A 0.08MH
Series：DKIH
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：Power Line
Number of Lines：3
Current Rating (Max)：50A
DC Resistance (DCR) (Max)：0.4mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：600V
Operating Temperature：-40°C ~ 100°C
Ratings：-
Approval Agency：CE, IEC, UKCA
Features：-
Mounting Type：Through Hole
Size / Dimension：2.283" Dia (58.00mm)
Height (Max)：1.220" (31.00mm)
Package / Case：Horizontal, 6 PC Pin
Inductance @ Frequency：-

Common Mode Chokes datasheet and documents for DKIH-3358-50C8

DKIH-3358-50C8

Common Mode Chokes Overview

The DKIH-3358-50C8 is a compensated high-current common mode choke manufactured by SCHURTER Inc. It is designed for three-phase applications with a rated current of 50A and an inductance of 80µH (0.08mH). The component features a typical DC resistance (DCR) of 0.4mOhm and utilizes a through-hole mounting type with six PC pins in a horizontal package configuration.

Common Mode Chokes Feature Summary

Provides common mode filtering for three-phase circuits
Designed for high-current compensation applications
Utilizes through-hole mounting technology

Common Mode Chokes Applications

Three-phase power line filtering
High-current circuit protection systems
Industrial equipment EMC mitigation

Common Mode Chokes Procurement Notes

Verify the specific part number DKIH-3358-50C8 against official SCHURTER documentation to confirm current availability status, as components may be subject to obsolescence or supply chain changes. Ensure compatibility with required voltage ratings and thermal operating conditions before procurement.

Common Mode Chokes Selection Notes

Select this component when three-phase common mode noise suppression is required at 50A. Verify that the 80µH inductance and low DCR meet system impedance requirements. Confirm through-hole PCB layout constraints align with the six-pin horizontal package dimensions.

Common Mode Chokes Part Context

This component belongs to the DKIH-3 series of compensated chokes from SCHURTER. These devices are engineered for robust performance in demanding electrical environments, offering reliable electromagnetic interference reduction for industrial and commercial power distribution architectures.

Common Mode Chokes Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Consult SCHURTER technical support for potential alternative solutions if this component is unavailable.
