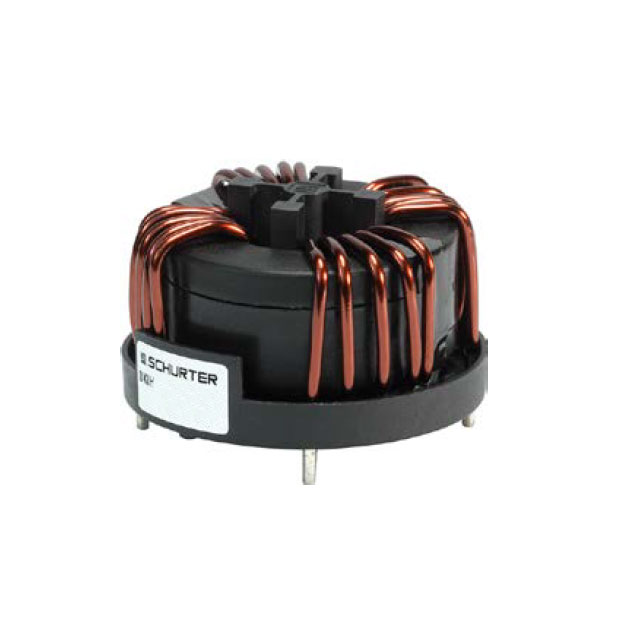

DKIH-3458-32D7-NK is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 32A 4LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for DKIH-3458-32D7-NK
- Description：CMC 32A 4LN TH
- Series：DKIH-4
- Mfr：SCHURTER Inc.
- Package：Box
- Filter Type：-
- Number of Lines：4
- Current Rating (Max)：32A
- DC Resistance (DCR) (Max)：-
- Voltage Rating - DC：760V
- Voltage Rating - AC：760V
- Operating Temperature：-40°C ~ 100°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：2.283" Dia (58.00mm)
- Height (Max)：1.220" (31.00mm)
- Package / Case：Horizontal, 8 PC Pin
- Inductance @ Frequency：-
Common Mode Chokes datasheet and documents for DKIH-3458-32D7-NK
Common Mode Chokes Overview
The DKIH-3458-32D7-NK is a current compensated common mode choke manufactured by SCHURTER Inc. Designed for through-hole mounting, this component features an eight-pin configuration suitable for industrial applications. It operates within a temperature range of -40°C to +100°C and supports a rated voltage of 760V. The device provides high current handling capabilities with a resistance of 8mΩ, ensuring efficient performance in three-phase systems while maintaining electromagnetic interference suppression standards.
Common Mode Chokes Feature Summary
- Current compensated design for three-phase applications
- Through-hole mounting with flange for PCB attachment
- Eight-pin terminal configuration for stable integration
Common Mode Chokes Applications
- Industrial environment power systems
- Three-phase current compensation circuits
- Electromagnetic interference suppression
Common Mode Chokes Procurement Notes
Verify the specific part number suffix against official SCHURTER documentation to ensure correct pinout and electrical ratings. Confirm that the through-hole package dimensions align with your printed circuit board layout requirements. Check for any recent product change notifications regarding material composition or manufacturing location updates before finalizing procurement orders.
Common Mode Chokes Selection Notes
Select this component when three-phase current compensation is required in industrial settings. Ensure the operating voltage does not exceed 760V and the ambient temperature remains within the specified -40°C to +100°C range. Verify that the eight-pin through-hole footprint matches the target PCB design constraints and mechanical mounting space availability.
Common Mode Chokes Part Context
This component belongs to the DKIH series of current compensated chokes from SCHURTER Inc. The series includes variants for one-phase and three-phase applications, all featuring through-hole terminals and PCB mounting flanges. These devices are engineered for robust performance in demanding industrial environments, providing reliable electromagnetic interference suppression and current compensation capabilities.
Common Mode Chokes Replacement Considerations
Consult official SCHURTER substitution guides for compatible alternatives. Verify electrical parameters and physical dimensions match before swapping components.
