DKIL-0231-1505

Common Mode Chokes Overview

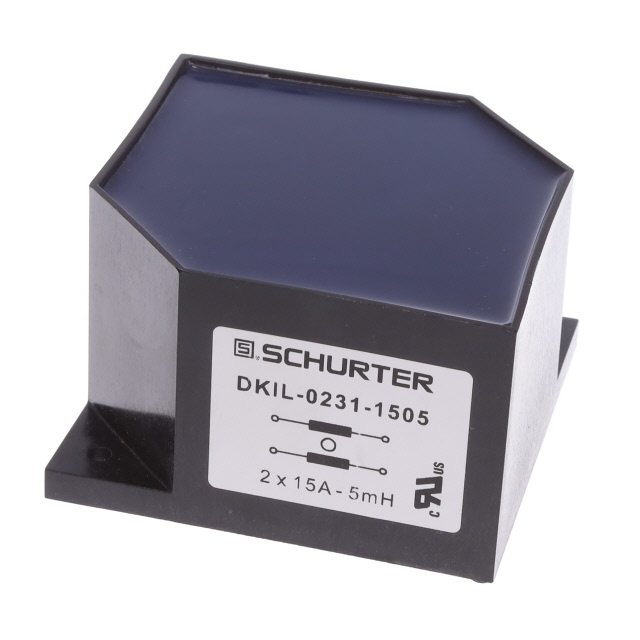

The DKIL-0231-1505 is a compensated high current choke from the Schurter DKIL series, designed for single-phase applications. It functions as a two-line common mode choke with through-hole mounting capabilities. The component supports a maximum DC current of 15A and features a low DC resistance of 17mOhms. Its inductance is specified at 1500uH, with a self-resolving frequency of 48kHz. Operating temperatures range from -25°C to +100°C.

Common Mode Chokes Feature Summary

• Compensated design for high current noise suppression
• Two-line configuration for single-phase circuits
• Through-hole chassis mount installation style

Common Mode Chokes Applications

• Single-phase power supply filtering
• High current noise suppression systems
• Industrial equipment EMI mitigation

Common Mode Chokes Procurement Notes

Verify the specific suffix against official Schurter documentation to ensure correct electrical parameters. Confirm RoHS compliance status directly with the manufacturer or authorized distributors. Check for recent production site reassignments or product changes that may affect lead times or specifications. Ensure the through-hole wire termination matches your assembly requirements.

Common Mode Chokes Selection Notes

Select this component when a compensated choke is required for single-phase lines carrying up to 15A. The 17mOhm DCR minimizes power loss compared to non-compensated alternatives. Verify that the 1500uH inductance meets your specific EMI filtering needs. Ensure the chassis mount form factor fits your enclosure constraints.

Common Mode Chokes Part Context

This part belongs to the Schurter DKIL series of compensated high current chokes. These components are engineered for robust performance in demanding industrial environments. The series offers various current ratings and inductance values to suit different power line filtering requirements while maintaining low insertion loss.

Common Mode Chokes Replacement Considerations

Check Schurter datasheets for direct replacements within the DKIL series with matching current and inductance ratings. Verify mechanical dimensions and terminal types before substituting. Cross-reference with DKIP series if compensation is not strictly required.
