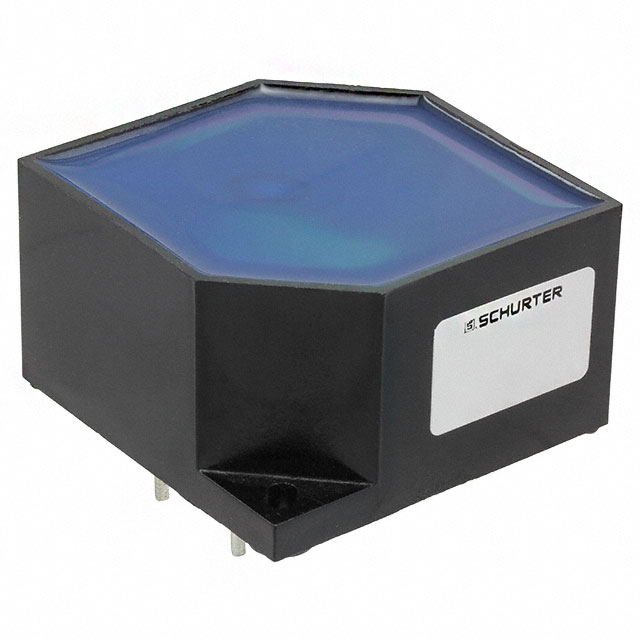

DKIL-0246-2001

Description：CMC 20A 2LN TH
Series：DKIL-1
Mfr：SCHURTER Inc.
Package：Bulk

SKU:6db30a0f1fb6 Category: Common Mode Chokes Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

DKIL-0246-2001 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is CMC 20A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for DKIL-0246-2001

Description：CMC 20A 2LN TH
Series：DKIL-1
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：20A
DC Resistance (DCR) (Max)：6mOhm
Voltage Rating - DC：760V
Voltage Rating - AC：540V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：UR
Features：-
Mounting Type：Through Hole
Size / Dimension：1.969" L x 1.969" W (50.00mm x 50.00mm)
Height (Max)：-
Package / Case：Radial
Inductance @ Frequency：-

Common Mode Chokes datasheet and documents for DKIL-0246-2001

DKIL-0246-2001

Common Mode Chokes Overview

The DKIL-0246-2001 is a compensated high current choke manufactured by SCHURTER Inc. It is designed as a single-phase common mode choke with two lines. The component features through-hole mounting and supports a maximum current rating of 20A. Its DC resistance (DCR) is specified at a maximum of 6mOhm, ensuring low power loss during operation. The device is rated for a DC voltage of 760V. This inductor serves as an electromagnetic interference filter in power supply circuits.

Common Mode Chokes Feature Summary

Compensated design for high current applications
Single-phase configuration with two lines
Through-hole termination style

Common Mode Chokes Applications

Power supply input filtering
Electromagnetic interference suppression
Common mode noise reduction in AC/DC converters

Common Mode Chokes Procurement Notes

Verify the specific datasheet version when sourcing this component, as manufacturer documentation may undergo revisions. Confirm that the through-hole package dimensions align with your PCB layout requirements. Ensure the 20A current rating and 760V DC voltage withstand capabilities meet the system's electrical specifications before finalizing procurement decisions.

Common Mode Chokes Selection Notes

Select this component for applications requiring single-phase common mode chokes with high current handling capabilities. The low DCR of 6mOhm makes it suitable for efficient power conversion stages. Consider the through-hole mounting method if surface-mount alternatives are not feasible for the mechanical constraints of the assembly.

Common Mode Chokes Part Context

This part belongs to SCHURTER Inc.'s line of compensated high current chokes. It is categorized under common mode chokes and inductors. The DKIL series is engineered for robust performance in industrial and consumer electronics power systems, providing reliable noise filtration while maintaining structural integrity under high load conditions.
